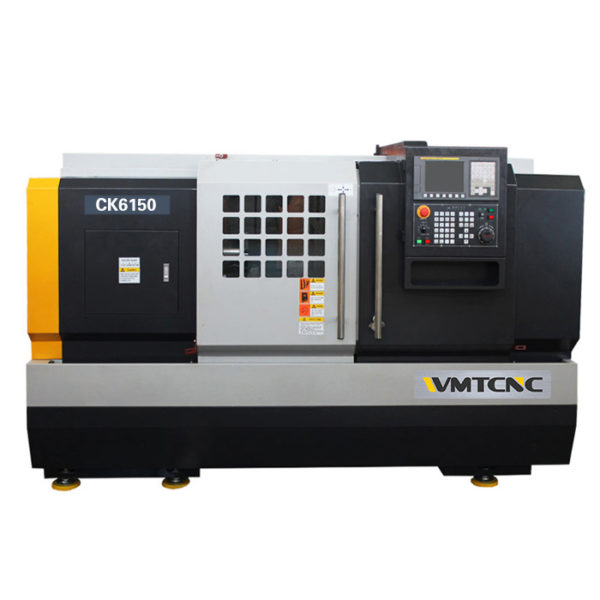

WMT CNC CK6150 Flat Bed CNC Lathe (500mm)

Max.swing over bed: Ф500mm

Max. swing over carriage: Ф280mm

Max. cutting length: 1500mm

Rail width: 400mm

Spindle nose: A2-8

Spindle bore: Ф82mm or Ф86mm; Optional Ф105mm

Taper of spindle bore: MT6

Chuck size: 10″

Range of spindle speed: 150-1600rpm or 3 steps:30-150，,10-500,150-1600rpm

X-axis travel: 330mm

Z-axis travel: 1500mm

X/Z rapid speed: 5/8m/min

X/Z screw: 3206/5010

Electronic turret: 4 or 6 or 8

Max.section of tool: 25x25mm

Stroke of tailstock sleeve: 150mm

Diameter/Hole of tailstock sleeve: Ф75mm/MT4

Main motor power: 7.5kw or 11kw

Coolant pump power: 180w

Overall dimensions L x W x H: 3320x1600x1830mm

Packing size L x W x H: 3520x1800x2030mm

Net weight: 3350kg

Gross weight: 3650kg
