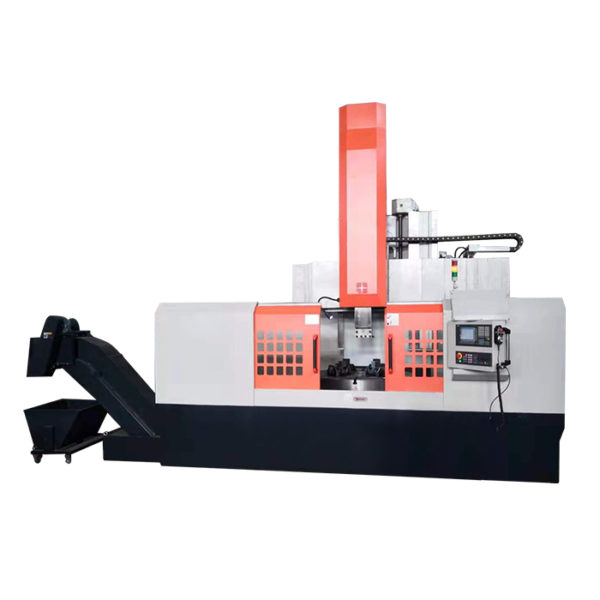

WMT CNC CK5116 CNC Vertical Lathe
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table dia.: 1400mm
Max. turning dia.: 1600mm
Max. workpiece height: 1000/1200/1400/1600mm
Max. workpiece weight: 5(8)t
Table speed step: 16
Table rotation speed range: 5-160(6.3-200)r/min
Horizontal travel of toolpost (X-axis): 915mm
Vertical travel of toolpost (Z-axis): 800/1000mm
Crossarm travel: 850mm
Main motor power: 30kW
N.W: 12.6/13.3/14/14.6t
Overall size(LXWXH): 2662x2800x3350/3550/3750/3950mm
