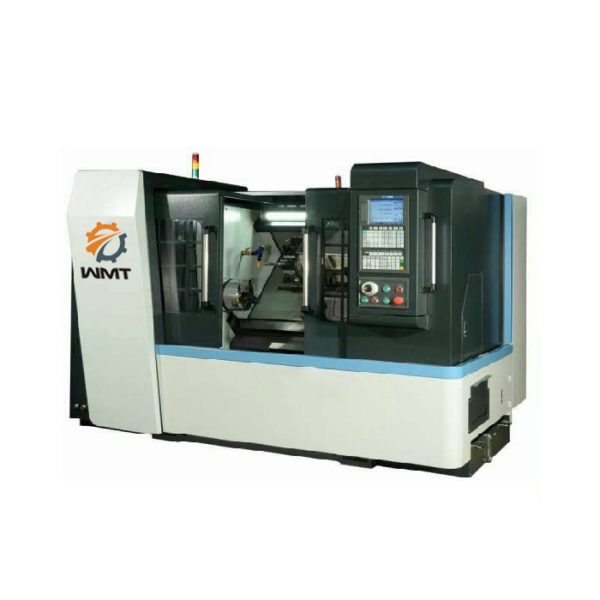

WMT CNC CK48T Slant Bed CNC Lathe (480mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max.swing over bed: 480mm
Max.swing over cross slide: 350mm
Max.maching diameter(disk/rod): 320mm/80mm
Max.length of work piece: 420mm
spindle bearing diameter: 100mm
Spindle bore diameter: 62mm
Spindle bore taper: 80mm
Spindle nose: A2-6
Spindle speed range: 60-3800r/min
Power of the main motor: 7.5-11kw
Min.input unit: 0.0005/0.001mm
Rapid speed: 20/20m/min
Hydraulic chuck: 8″
Hydraulic station: 8
Max.dia for boring size: 32mm
Quill diameter: 80mm
Quill travel: 80mm
Packing size: 2220x1405x1640mm
N.W/G.W: 3400/3800kg
