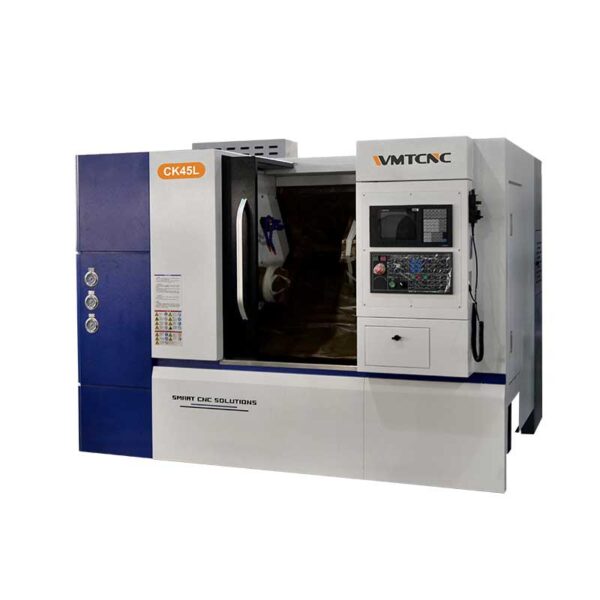

WMT CNC CK45L Slant Bed CNC Lathe (450mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Chuck size: 8inch
Max. swing over bed: 450mm
Max. length of workpiece: 450/500(optional)mm
Max. swing over cross slide: 220mm
Spindle bore: 62mm
Spindle hole after hydr.: 52mm
Spindle nose: A2-6
Spindle speed: 4000rpm
Main motor power: 7.5/11kW
X axis travel: 180mm
Z axis travel: 450/500mm
X/Z rapid traverse: 20/20m/min
Tool post: 8
Type of tailstock: Hydraulic/HPT
Taper of tailstock quill: MT4
Travel of tailstock quill: 90/0mm
Slant bed degree: 35degree
Overall dimension(LxWxH): 2650×2000×2050mm
Weight: 3700/3800kg
