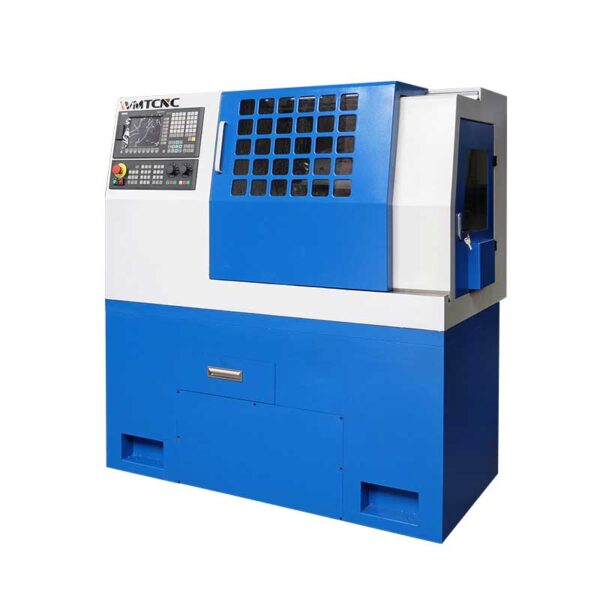

WMT CNC CK30L/400 Slant Bed CNC Lathe
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. swing over bed: 300mm
Max. swing over carriage: 100mm
Distance between centers: 400mm
Chuck size: 125mm
Spindle speed: 100-3000r/min
Spindle bore: 20mm
Spindle taper: MT3
Spindle power: 1500W
X axis travel: 120mm
Z axis travel: 320mm
Max. rapid speed: 5000mm/min
Max. feed speed: 1000mm/min
Feed motor: 400w
Position of toolpost: 8
Tailstock taper: MT2
Tailstock dia.: 30mm
Tailstock travel: 50mm
Positioning accuracy: 0.010mm
Voltage: 230/110V
N.W/G.W: 620kg/700kg
Machine size (LxWxH): 1400×770×1600mm
Packing size (LxWxH): 1650×1090×1920mm
