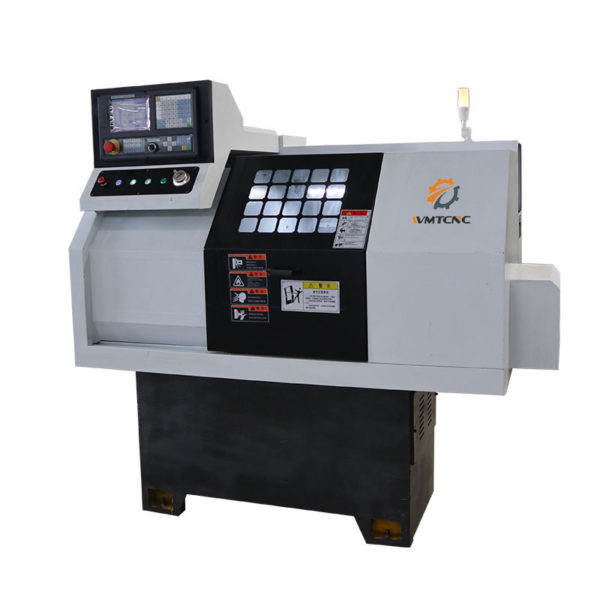

WMT CNC CK0640 Flat Bed CNC Lathe (260mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max.swing over bed: 260mm
Diameter of X axis ballscrew: 25mm
Thread pitch of X axis ballscrew: 4mm
Diameter of Z axis ballscrew: 32mm
Thread pitch of Z axis ballscrew: 6mm
X-axis travel: 250mm
Z-axis travel: 180mm
Pneumatic chuck: 32mm
Toolpost: 4 position electrical toolpost
Main Motor: 3kw
Motor for Coolant pump: 90W
Spindle bore: 49mm
Spindle hole after install pneumatic: 41.5mm
positioning accuracy: 0.01mm
Servo motor torque: 4.0NM
CNC controller system: after 980MDC
Machine size: 1760x1070x1730mm
G.W: 700kg
