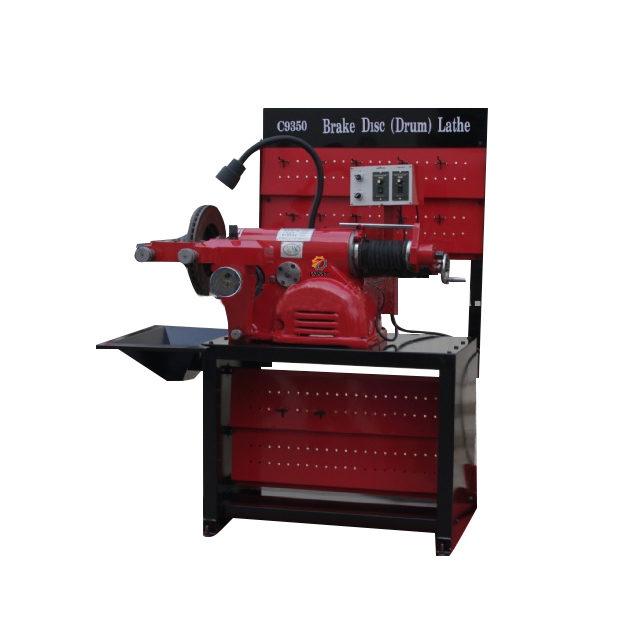

WMT CNC C9350 Brake Disc Lathe Machine (0.75kW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Range of processing: brake drum: Φ152-Φ500mm
Brake plate: Φ180-Φ330mm
Max depth of processing brake drum: 175mm
Rotor thickness: 1-7/8” (48mm)
Spindle Speed: 70,80,115r/min
Spindle feed speed: 0.002″-0.02″ (0.05-0.5mm)Rev
Crossfeed speed: 0.002″-0.02″ (0.05-0.5mm)Rev
Max processing depth: 0.5mm
Machine Power: 0.75kw
Motor: 110V/220V/380V,50/60HZ
NW/GW: 300/350KG
Overall Dimension (L×W×H): 970×920×1140mm
Packing Dimension (L×W×H): 1220×890×1450mm
