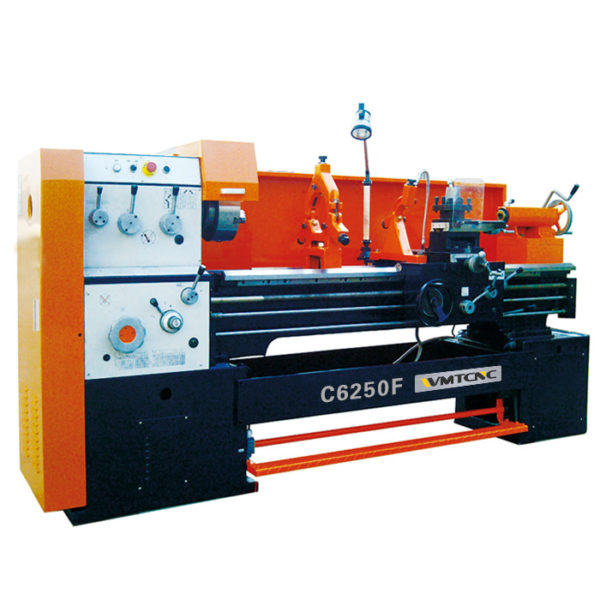

WMT CNC C6250F Engine Lathe (16-1600rpm)

Max.swing over bed: 500mm

Max.swing over cross slide: 330mm

Max.swing over gap: 660mm

Effective length of gap: CC: 130/130mm

Center Distance: 750/1000/1500/2000/3000

Bed Width: 360mm

Spindle hole: 52mm

Spindle nose: ISO-C6

Spindle taper: MT6

Spindle speed(Number): (12steps)16-1600rpm

Metric threads range: 19kinds 0.25-14mm

Inch threads range: 49 kinds 2-40inch

Max.travel of cross slide: 250mm

Max.size of tool shank: 20×20mm

Dia.of tail stock sleeve: 65mm

Taper of tail stock sleeve: MT4

Max.travel of tail stock: 130mm

Main drive motor: 4kw or 5.5kw

Coolant pump motor: 125W

Packing size: 2250/2450/2880x110x1650mm
