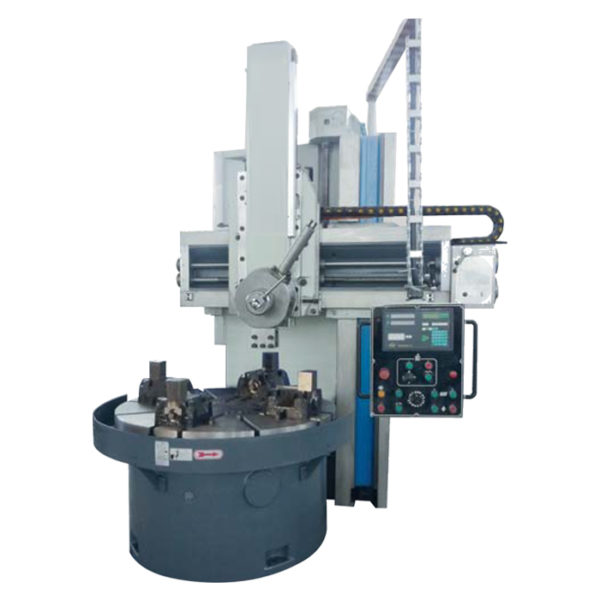

WMT CNC C5116D Vertical Lathe (30kW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table dia.: 1400mm
Max. turning dia.: 1600mm
Max. workpiece height: 1000/1200/1400/1600mm
Max. workpiece weight: 5t
Table speed range: 5-160r/min
Table rotation speed step: 16
Vertical toolpost feed range: 0.8-86 r/min
Vertical side toolpost feed step: 12
Horizontal travel of vertical toolpost: 915mm
Vertical travel of vertical toolpost: 800/1000mm
Crossarm travel: 850/1050/1250/1450mm
Main motor power: 30kW
Feeding motor power: 1.3/1.8kw
N.W: 12.7t
Overall size(LXWXH): 2662x2800x3550mm
