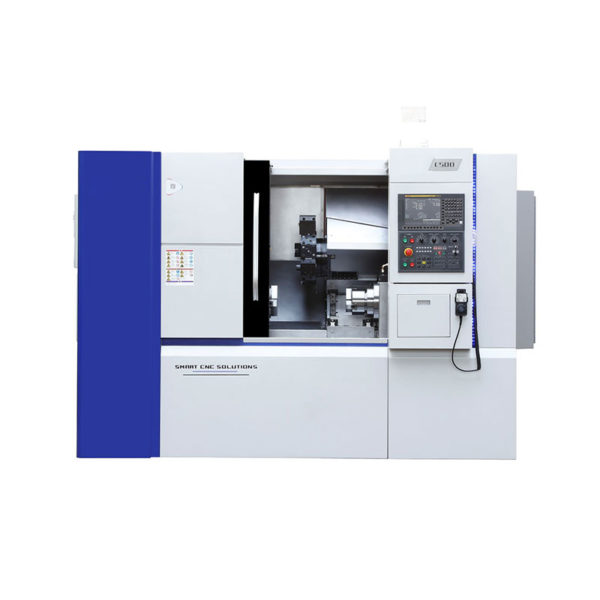

WMT CNC C500 CNC Turning Milling Machine (510mm)

Capacity

Max. Turning Diameter: ∅320mm

Max. Workpiece Length: 430mm

Max. Swing Over Bed: ∅510mm

Main Spindle

Hydraulic Chuck: 8mm

Spindle Bore/ Max. Bar Capacity: ∅66/52mm

Spindle Nose: A2-6

Max. Spindle Speed: 4000rpm

Main motor power: 22kW

Sub Spindle

Hydraulic Chuck: 6 inch

Spindle Bore/ Max. Bar Capacity: ∅55/46mm

Spindle Nose: A2-5

Max. Spindle Speed: 5000rpm

Main motor power: 11kW

Axis

X axis travel: 180mm

Z1 axis travel: 400mm

Z2 axis travel: 430mm

Y axis travel: 100(±50)mm

Feed Rate

X/ Z1/ Z2/ Y axis rapid traverse: 24/30/30/10m/min

X/ Z1/ Z2/ Y axis ballscrew: 32×P08/ 32×P10/ 32×P10/ 32×P06

Cutting feed rate: 10m/min

Turret

No. of tool: 12

OD Tool Shank Size: 25×25mm

Boring Tool Shank Size: ∅32m

Live tooling motor: 2.2/ 3.7 kW

Other

Power Capacity: 35KVA

Overall dimensions (L×W×H): 2900×1850×2250mm

Weight: 5900kg
