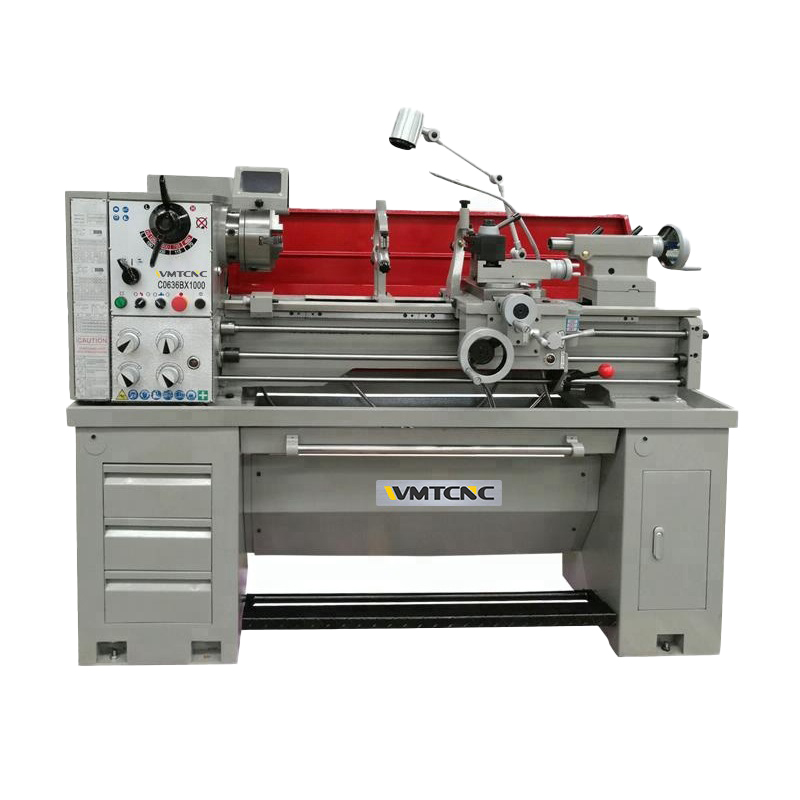

WMT CNC C0636B Bench Lathe
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Swing over bed: Φ360mm
Swing over cross slide: Φ212mm
Swing over gap: Φ491mm
Distance between centers: 1000mm
Bed width: 187mm
Spindle bore and nose: Φ52mm / D1-5 camlock
Spindle taper: MT5
Speeds number: 8 or 16(pole changeable motor:optional)
Speeds range: 70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread: 8 TPI or 3mm pitch
Cutting tool max section: 16×16mm
Tailstock sleeve taper and travel: MT3 100mm
Main motor: 1.5kw/3 PH or 1 PH
Cross slide travel: 118mm
Net /Gross weight: 650/700kgs
Packing size: 1940 X 750 X 1510mm
