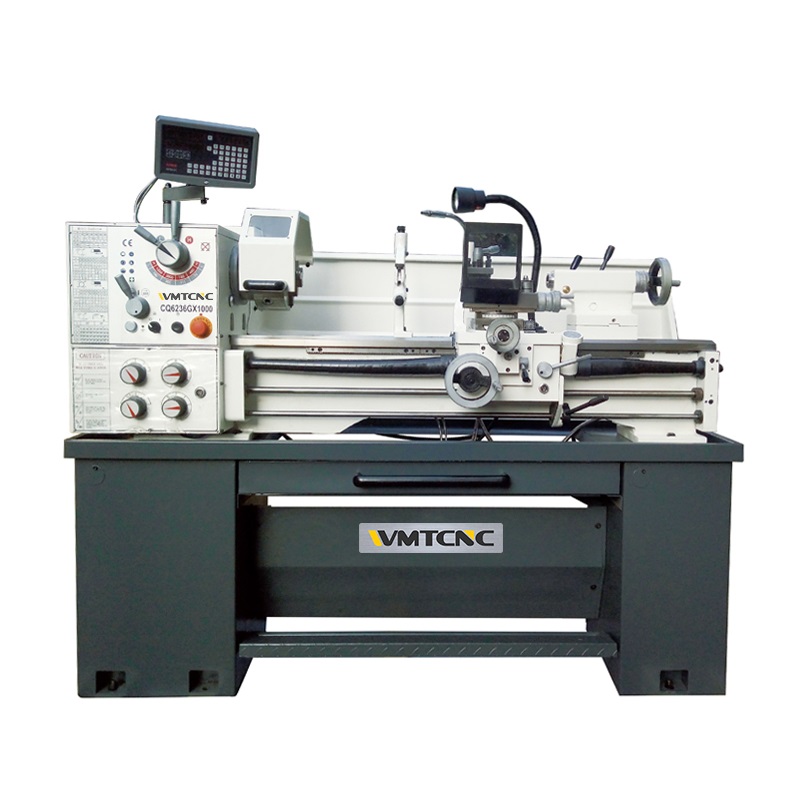

WMT CNC C0636A Bench Lathe (2.2KW)

Swing over bed: Φ360mm

Swing over cross slide: Φ212mm

Swing over gap: Φ491mm

Distance between centers: 750mm/1000mm

Bed width: 187mm

Spindle bore and nose: Φ38mm / D1-4 camlock

Spindle taper: MT5

Speeds number: 8 or 16(pole changeable motor:optional)

Speeds range: 70-2000rpm or 35-2000 rpm(2 speed motor)

Leadscrew thread: 8 TPI or 3mm pitch

Cutting tool max section: 16×16mm

Tailstock sleeve taper and travel: MT3 100mm

Main motor: 1.5kw/3 PH or 1 PH

Cross slide travel: 118mm

Compoud rest travel: 68mm

Net /Gross weight: 620/670kgs

Packing size: 1940 X 750 X 1510mm
