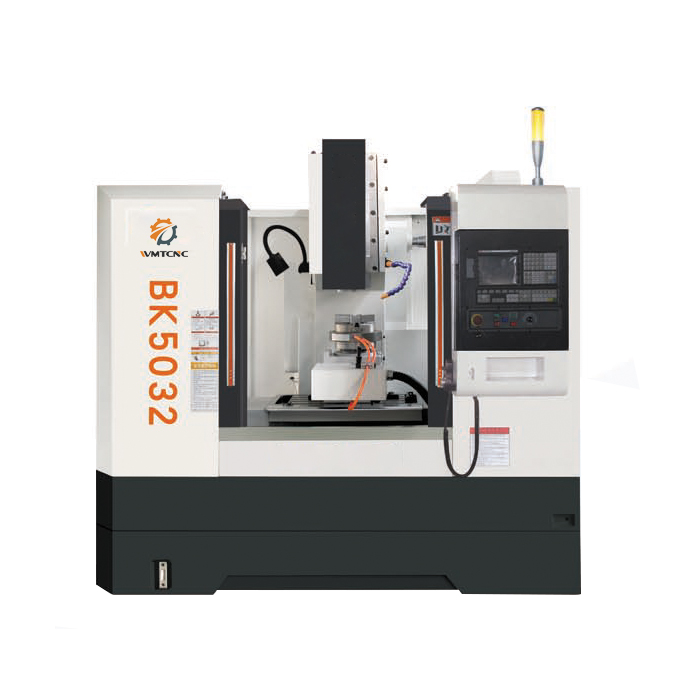

WMT CNC BK5032 Slotting Machine (4kW)

The maximum length of ram: 320mm

Ram adjustment stroke: 315mm

Number of ram movement: 20/32/50/80n/min

Working desk size: 600×320mm

Table travel(X,Y): 620×560mm

The distance between the axis of the tool bearing hole and the forearm of the column: 600mm

The distance between the end face of the cutter head support hole and the table: 590mm

X direction motor torque: 7.7(N/M)

Y direction motor torque: 7.7(N/M)

Fast-moving: 5X(m/min), 5Y(m/min)

Ball screw(X): FFZD3205-3/P4

Ball screw(Y): FFZD3205-3/P4

Main motor power: 4KW

Machine tool weight(about): 3700KW

package dimensions: 2800/2400/2500mm
