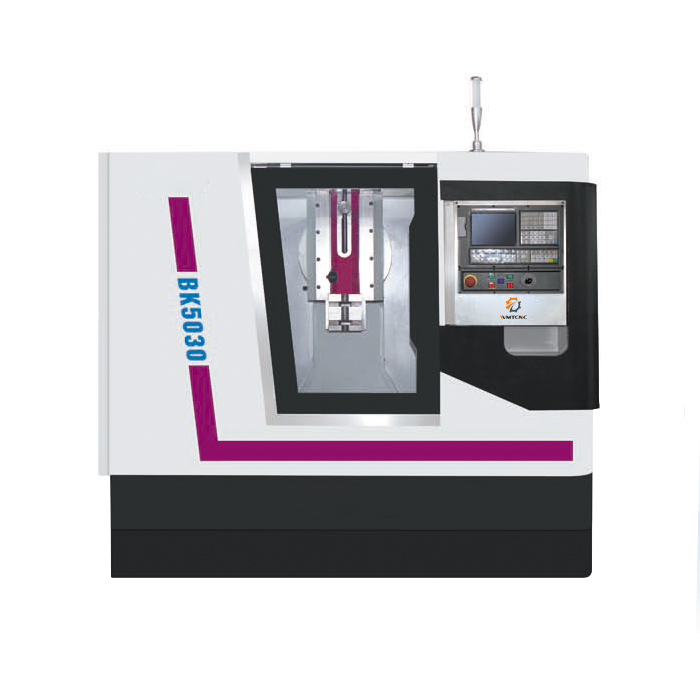

WMT CNC BK5030 Slotting Machine (3.7kW)

The maximum length of ram: 300mm

Ram adjustment stroke: 300mm

Number of ram movement: 20/80n/min

Working desk size: 550×405mm

table travel(X,Y): 280×330mm

The distance between the axis of the tool bearing hole and the forearm of the column: 505mm

The distance between the end face of the cutter head support hole and the table: 540mm

X direction motor torque: 6(N/M)

Y direction motor torque: 6(N/M)

Fast-moving: 5X(m/min), 5Y(m/min)

Ball screw(X): FFZD3205-3/P4

Ball screw(Y): FFZD3205-3/P4

Main motor power: 3.7KW

Machine tool weight(about): 2800KW

package dimensions: 2300/2200/2300mm
