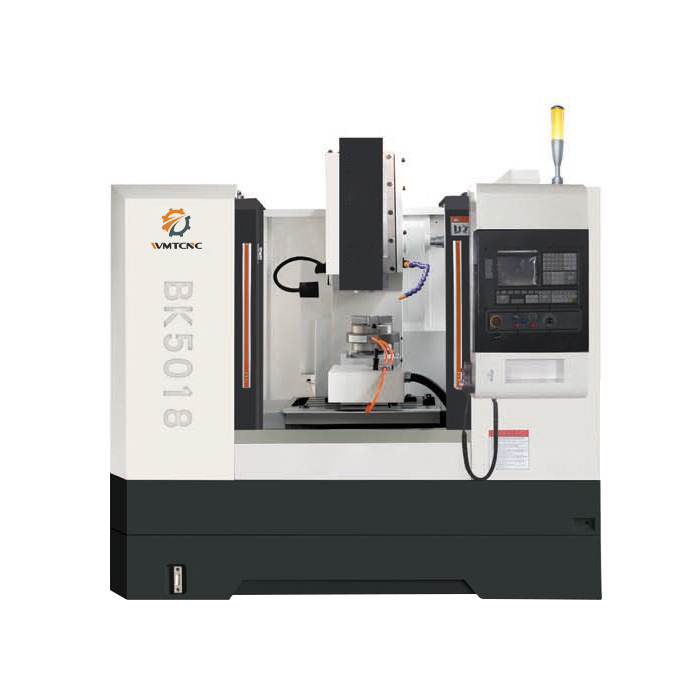

WMT CNC BK5018 Slotting Machine (3.7kW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
X-axis stroke: 320mm
Travel Y-axis: 320mm
Max.pin length: 180mm
Sleeper movement times: 20-120min
Main motor power(servo motor): 3.7KW
Workbench size: 600×320mm
Fast-moving speed (X/Y): 5/5m/min
Gyration angle: 360°
The distance between the working table and the slippery pillow: 600mm
Max.load of worktable: 100KG
shape size: 1980×2046×1817mm
Machine tool weight(about): 1800KG
Package dimensions: 2200/2100/2300mm
