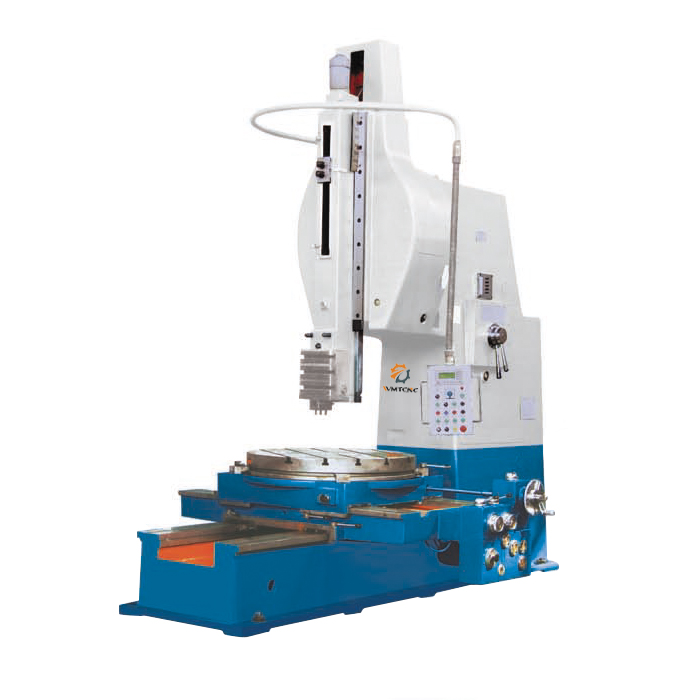

WMT CNC BC5063 Slotting Machine (11kW)

Maximum insertion length of the ram(interpolated inner hole 530 mm): 630mm

The number of reciprocation per minute of the ram: 8,12,20,30r.p.m

Ram tilt angle: ±10

Tool chuck T-slot width: 22H11mm

Distance from the tool support surface to the front wall of the bed: 1120mm

Work surface to the lower end of the carriage: 800mm

Worktable maximum longitudinal movement distance: 1000mm

Worktable maximum lateral movement distance: 700mm

Worktable vertical and horizontal feed: 0,10,0.20,0.32,0.54,0.80,1.30mm/per

Worktable rotary feed: 3’6′,9’36”,16’12”,24′,39’deg/per

Table diameter: 1120mm

Workbench maximum load: 200kg

Workbench central T-slot width: 22H11 mm

Main drive motor power:11kw

Feed servo motor: 4.0kw

Ram position adjustment motor: 0.55kw1400r.p.m

Maximum cutting force: 20000N

Machine net weight(about): 11T

Machine tool outline size (length x width x height): 3580×2390×3660

Split package size: 3780/2560/1300/2350/1200/2500mm
