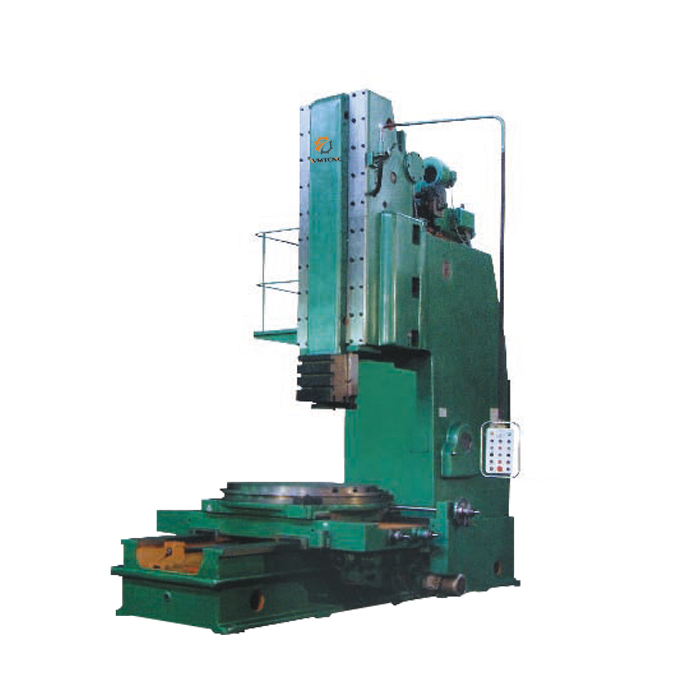

WMT CNC BC50100 Slotting Machine (37kW)

Maximum cutting length(interpolated inner hole 850mm): 1000mm

Cutting stroke speed: 4-25m/min

Return travel speed: 7-25m/min

Maximum weight for plug gable work: 4000kg

Main drive motor power: 37kw

Allow maximum cutting force(when the stroke speed is 16m-20m): 24500N

Table diameter: 1250mm

Maximum movement of the workbench: 1200/1100mm

Distance from the tool support surface to the front wall of the bed: 1120mm

Feed range: 0. 2-5mm/double stroke

Landscape: 0. 2-5mm/double stroke

Circumference(on the circumference of 9700): 0.4-10mm/double stroke

Distance from work surface to the lower end of the carriage: 1140mm

Workbench fast-moving longitudinal and horizontal: 500mm/min

Machine dimensions (length X width x height): 400×2830×570mm

Total machine weight(including electrical equipment): 22T
