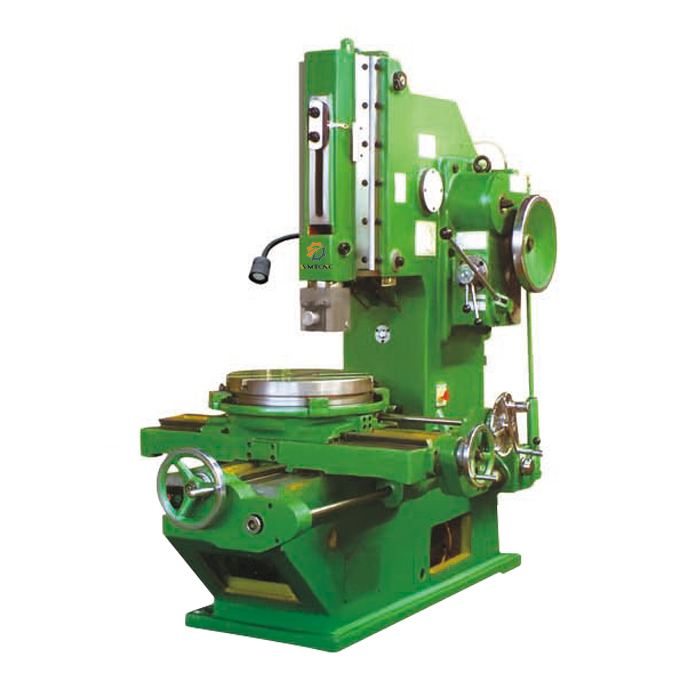

WMT CNC B5020 Slotting Machine (3kW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
X-axis stroke: 500mm
Travel Y-axis: 500mm
Max.pin length: 200mm
Sleeper movement times: 32,50,80,125/min
Main motor power(servo motor): 3KW
Workbench size: 500×500mm
Gyration angle: 360°
The distance between the working table and the slippery pillow: 320mm
Max.load of worktable: 120KG
shape size: 1916×1305×1995mm
Machine tool weight(about): 2200KG
Package dimensions: 2200/1400/2300mm
