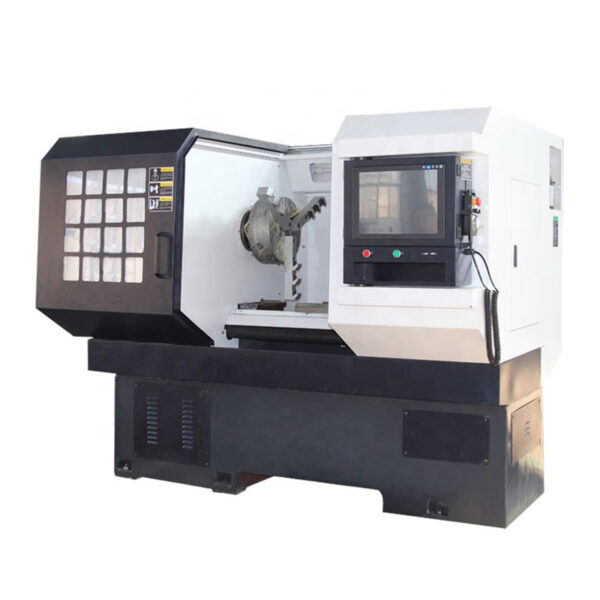

WMT CNC AWR26 Wheel CNC Lathe (660mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max.Swing diameter over bed: 660(26” )mm
Max.swing diameter over gap: 760mm
Max. Size of alloy wheel: 660(26“)mm
Max.turning length: 650mm
Width of the rail: 360mm
Axis travel: X: 350mm, Z: 500mm
Spindle speed: 40-1800r/min
Spindle taper: 6#MT
Spindle hole: 52mm
Tool shank size: 25×25mm
Rapid traverse of X axis: 3000mm/min
Rapid traverse of Z axis: 6000mm/min
Main motor power: 5.5kW
X and Z axis motor: Servo motor
Overall dimension (L×W×H ): 2100x1700x1950mm
Weight: 2300kg
