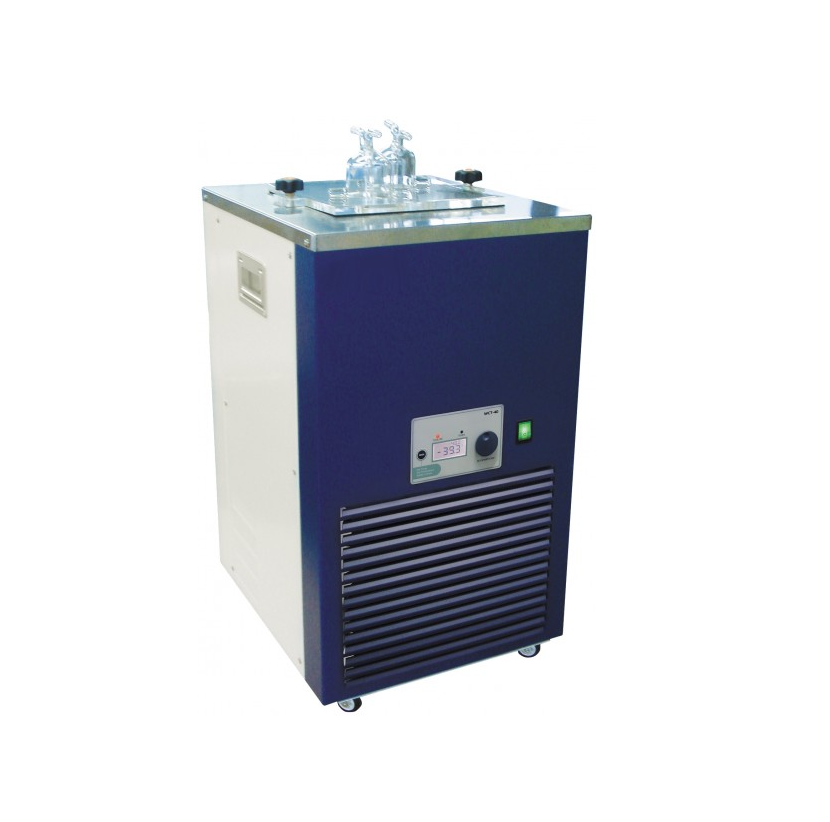

WITEG WCT-80 Cold Trap Bath (-65°C up to -80°C; 10l)

Capacity: 10l

Temperature range: -65°C up to -80°C

Cold trap type: 2 x glass trap

Refrigerator: 750W

Refrigerant: HFC

Internal dimensions ( WxDxH, mm): 220 x 220 x 210 mm

External dimensions ( WxDxH, mm): 377 x 453 x 705 mm

Packing size & gross weight: 680 x 640 x 1130 mm, 90kg

Power supply: AC 230V, 50/60 Hz

Accessory:

Spare glass cold trap CTG1000 ( Order number: DH.WCT11000)

Size: Ø106 mm x height: 249 mm

Safety pressure resistant: 1.5 bar at 250°C

Borosilicate glass 3.3

Datasheet

Manual
