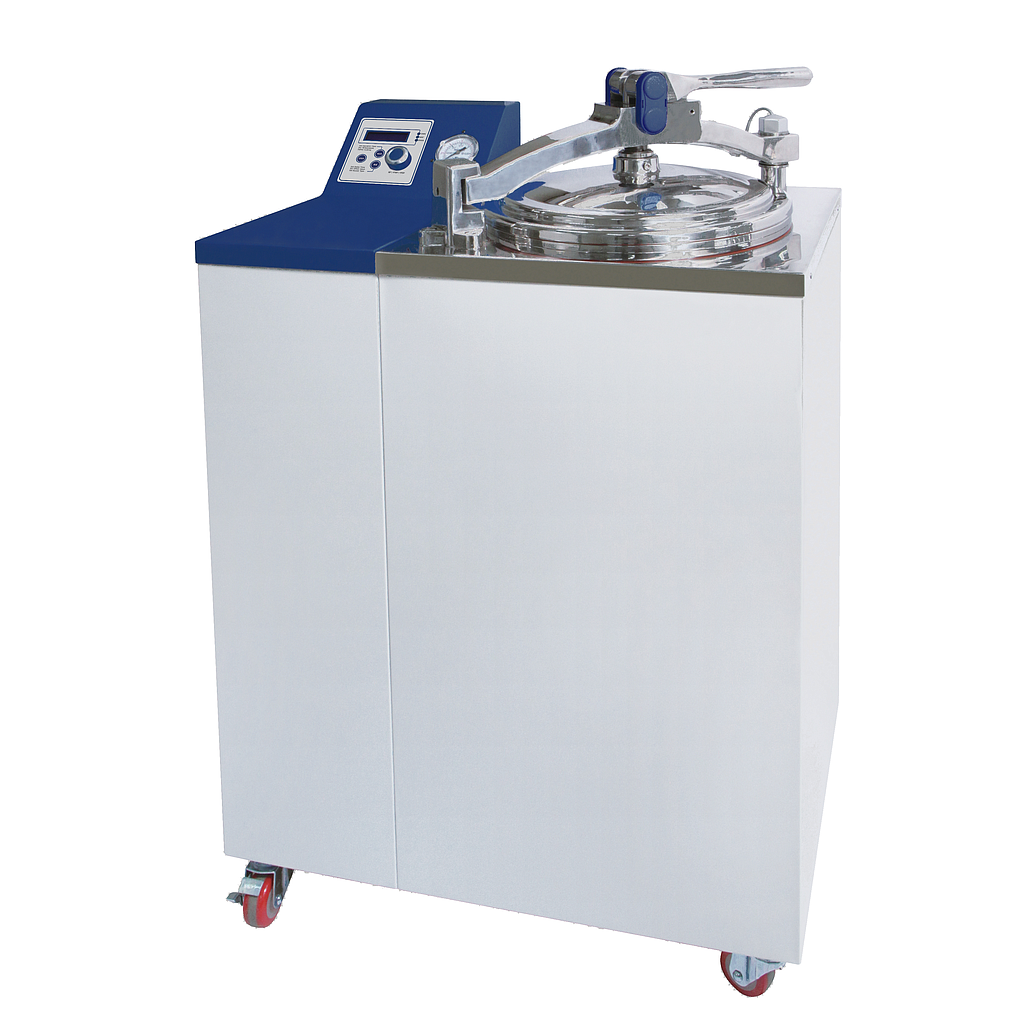

WITEG WAC-80 Steam Sterilizer (80L; 2.0 kgf/cm2)

Capacity: 80 l

Temperature range & accuracy: Room temperature +5°C - 132°C; ±0.5°C to 121°C

Pressure & gauge: 1.2 kgf/ cm2 at 121°C / 2.0 kgf/ cm2 at 132°C, gauge: 0 - 3 kgf/ cm2

Heating power (consumption): 3 x 2 kW

Door & closing system: lever type sliding door/ safety electronic door closing system

Basket dimensions: Ø370 x 240 mm

Internal dimensions (W x D x H): Ø400 x 650 mm

Outer dimensions (W x D x H): 810 x 580 x 1140 mm

Packing size & gross weight: 810 x 580 x 1140 mm; 170 kg

Power supply: 3 Phase AC 400 V, 50/60 Hz, with terminal block
