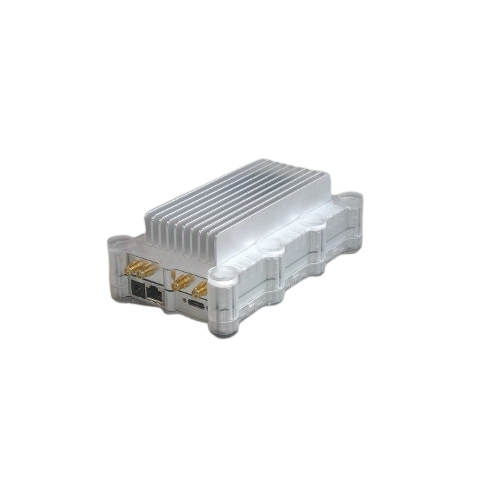

WinRADiO WR-G69DDCe Receiver (8 kHz~80 MHz; 43 MHz~8 GHz; EXCELSIOR Ultra)

Receiver type: Digitally down-converting software-defined receiver with two independent and mutually exclusive inputs, one per each range.

Frequency ranges:

Range 1: 8 kHz to 80 MHz (direct sampling)

Range 2: 43 MHz to 8 GHz (superheterodyne)

Tuning resolution: 1 Hz

Mode: AM, AMS, LSB, USB, DSB, ISB, CW, FMN, FMW, FSK, UDM (user-defined mode), DRM mode (optional)

- Range 1: 8 kHz to 80 MHz

Image Rejection: 90 dB typ.

P1dB: -8 dBm typ.

IP3: +30 dBm typ.

Input damage level: +30 dBm

SFDR: 105 dB

Noise figure: 16 dB

MDS: -128 dBm @ 10 MHz, 500 Hz BW

LO Phase noise: -145 dBc/Hz @ 10 kHz

- Range 2: 43 MHz to 8 GHz

Image Rejection: 60 dB typ.

P1dB: -15 dBm typ. (Preamp OFF); -32 dBm typ. (Preamp ON)

IP3: +6 dBm typ. (Preamp OFF); -11 dBm typ. (Preamp ON)

Input damage level: +30 dBm

SFDR: 90 dB (Preamp OFF); 85 dB (Preamp ON)

Noise figure: 15 dB typ. (Preamp OFF); 6 dB typ. (Preamp ON)

MDS: -129 dBm @ 800 MHz, 500 Hz BW (Preamp OFF)

-138 dBm @ 800 MHz, 500 Hz BW (Preamp ON)

LO Phase noise: -106 dBc/Hz @ 10 kHz typ.

- Common specifications for both Range 1 and Range 2:

Internal spurious: below -100 dBm

RSSI accuracy: 2 dB typ.

RSSI sensitivity: -140 dBm

Processing and recording bandwidth:

20 kHz - 32 MHz over USB 3.0

20 kHz - 6.4 MHz over USB 2.0

20 kHz - 16 MHz over 1Gbps LAN

Demodulation bandwidth (selectivity): 1 Hz - 320 kHz (continuously variable in 1 Hz steps)

Spectrum analyzers:

Input spectrum/waterfall, 80/34 MHz BW, 2.6 kHz RBW

DDC spectrum/waterfall, 32 MHz BW, 1 Hz RBW

Channel spectrum, 320 kHz BW, 1 Hz RBW

Demodulated audio, 64 kHz BW, 1 Hz RBW

ADC: 16 bit, 200 MSPS

Tuning stability: 0.1 ppm (0 to 50 °C)

Antenna inputs: 2 x 50 ohm (SMA connectors)

Output: 24/16-bit digitized I&Q signal over USB/LAN interface

Interface:

USB 3.0

USB 2.0

1 Gbit Ethernet with PoE (Power over Ethernet)

Self-diagnostics: BIT (Built-In test) of the signal and processing path.

Thermal management - temperature monitoring.

Power supply: 16 W (12 V/1.33 A), or 20 W (PoE - IEEE 802.3at)

Operating temperature: 0 to 50 °C (with 12V PSU and via PoE with /LP HW option)

Dimensions: 166 x 97 x 59 mm (6.5" x 3.8" x 2.3")

Weight: 839 g (29.6 oz)

- System requirements:

PC with 2.4 GHz quad core CPU or faster

One free USB 3.0 or Ethernet socket

Windows 8, 10 or 11
