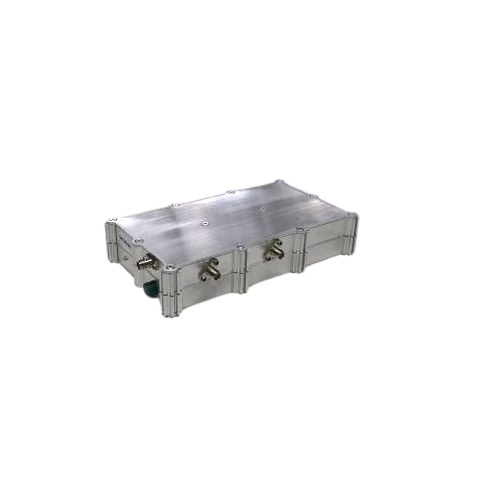

WinRADiO WR-G526e Receiver (20 - 3000 MHz,Turner Module)

Input frequency range: 20 - 3000 MHz

Tuning resolution: 10 Hz

Output frequency: 21.4 MHz

Output bandwidth: 22 MHz

Gain: 30 dB typ.

Noise figure: 12 dB typ. @ 100 MHz

Internal spurii: -105 dBm typ.*

IF rejection: >60 dB

Maximum input level: +10 dBm

Attenuation control: 0-30 dB switchable front-end attentuator in 2 dB steps, 20 dB switchable attenuator in IF path

IP3: 0 dBm typ.

Input impedance: 50 ohm (SMA connector) for each channel

Output impedance: 50 ohm (SMA connector) for each channel

Amplitude ripple: 3 dB typ.

Phase ripple: 3 degrees typ.

Phase adjustment range: 20 degrees typ.

Phase adjustment resolution: 0.1 degrees typ.

Channel-to-channel isolation: >80 dB

Operating voltage: 12 V DC ±5%

Power consumption: 8 W typ.

Dimensions: 150 x 90 x 30 mm (5.9" x 3.5" x 1.2")

Weight: 330 g (11.6 oz)

Operating temperature: -10º to +60º C

Humidity: 20-90% non-condensing
