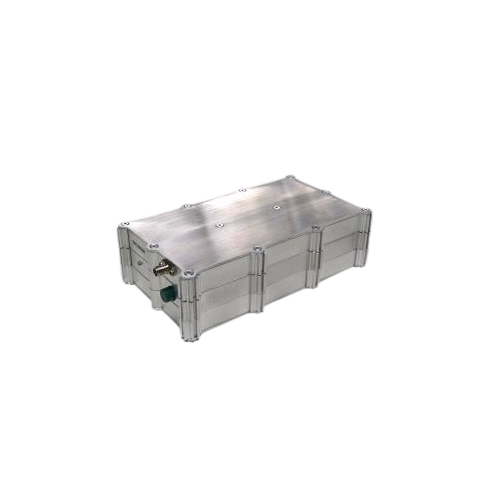

WinRADiO WR-G526e Receiver (20 - 3000 MHz; Integrated Single-channel Module)

Input frequency range: 20 - 3000 MHz

Tuning resolution: 10 Hz

Output frequency: 21.4 MHz

Output bandwidth: 22 MHz

Gain: 30 dB typ.

Noise figure: 12 dB typ. @ 100 MHz

Total LO phase noise: -86 dBc/Hz @ 10 kHz

Internal spurii: -105 dBm typ.*

Tuning speed: 16 ms typ.

Settling speed: 0.8 ms / MHz typ.

Frequency stability: 0.01 ppm

IF rejection: >60 dB

Maximum input level: +10 dBm

Attenuation control: 0-30 dB switchable front-end attentuator in 2 dB steps,

20 dB switchable attenuator in IF path

IP3: 0 dBm typ.

Input impedance: 50 ohm (SMA connector)

Output impedance: 50 ohm (SMA connector)

Operating voltage: 12 V DC ±5%

Power consumption: 8 W typ.

Dimensions: 150 x 90 x 45 mm (5.9" x 3.5" x 1.8")

Weight: 650 g (23 oz)

Operating temperature: -10º to +60º C

Humidity: 20-90% non-condensing
