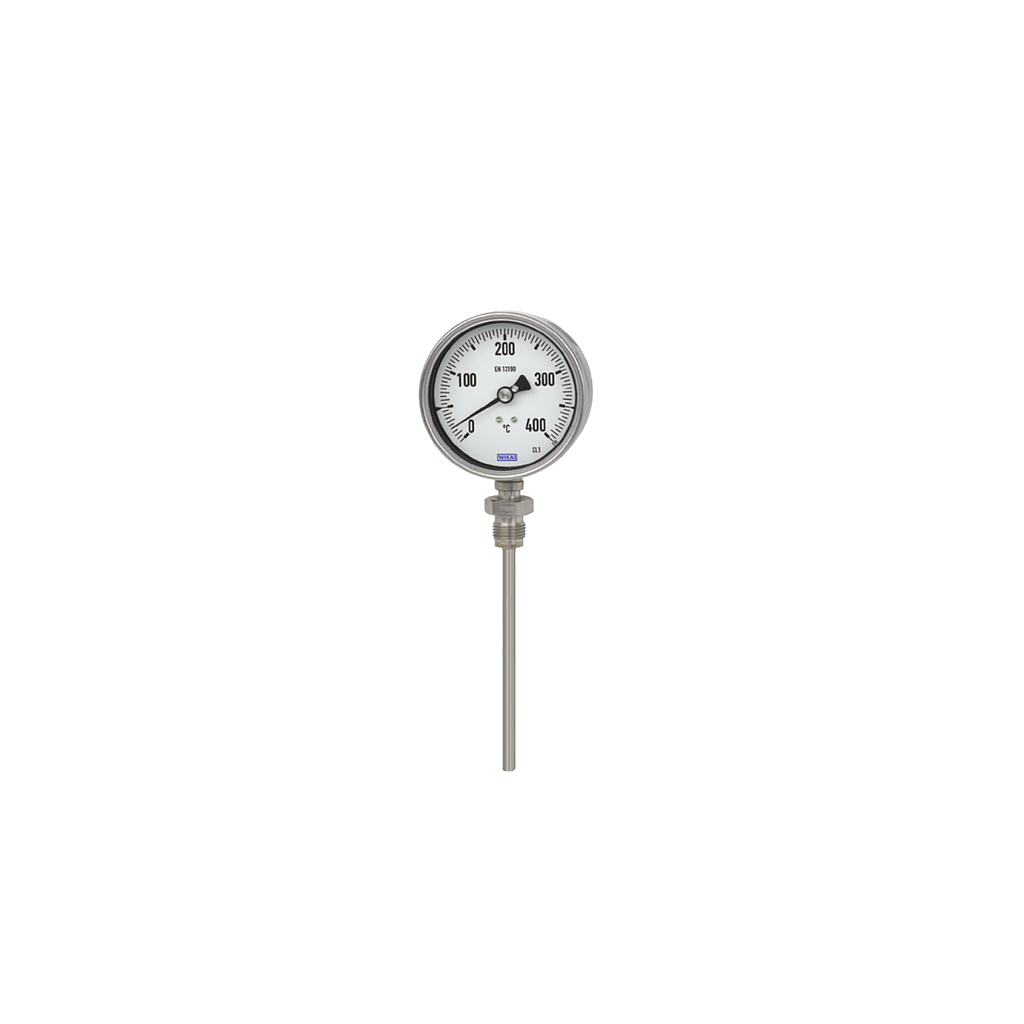

WIKA R5502 Bimetal Thermometers (0 ~ 600°C, 1/2″NPT)

Mediums: Steam, water, hot oil, etc.

Case and bayonet ring: Stainless steel

Stem and process connection: Stainless steel 1.4571

Accuracy class: DIN EN 13 190

Temperature: Up to 60°C

Connection: 1/2″ NPT threaded connection

Working pressure: According to DIN EN 13 190

Measuring range:

0 ~ 150°C

0 ~ 300°C

0 ~ 400°C

0 ~ 500°C

0 ~ 600°C

Probe length:

L = L1 + 40

L1 = 160 x 8 mm
