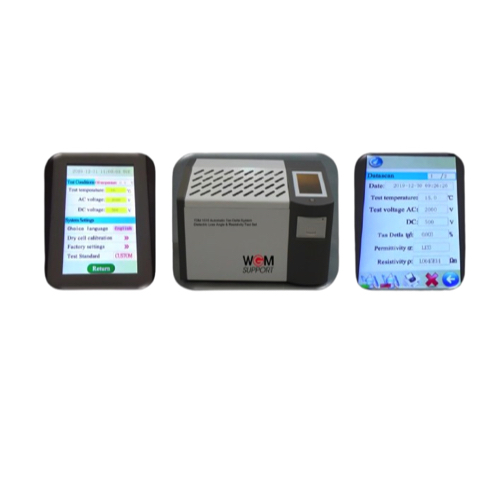

WGM TDM1515 Automatic Dielectric Constant Tan Delta & Resistivity (1pF – 200pF; 0 – 100%; 10M – 10T)

Measuring range:

Capacity: 1pF – 200pF; Resolution: 0.01pF

Dielectric loss: 0 – 100%; Resolution: 1×10⁵

Resistivity: 10M – 10T; Minimum: 0.1M

Accuracy of measurement:

Capacity: 0.5% + 1pF; Temperature control accuracy: ±1℃

Dielectric loss: 1% + 0.0003; Temperature control scope (Ambient temperature): 120℃

Resistivity: 20%; Voltage: AC (Dielectric loss): AC 2000V; DC (Resistivity): DC 500V

Ambient temperature: 0 – 40℃

Ambient humidity: ＜75% RH

Operation power supply: AC220V ±10% (50 ±1)Hz

Dimension: 500 × 360 × 420 mm

Power: 100W

Weight: 22kg (With oil cup)
