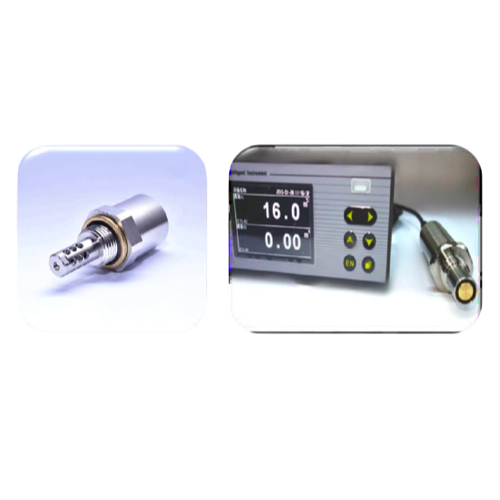

WGM ST-200 Moisture Content Sensor (0 – 1%; -40°C ~ 120°C)

Measurement range: 0 – 1% (could be customized)

Accuracy: ± 0.02 (typical)

Resolution: 0.001%

Temperature: -40°C to 120°C

Accuracy: 0.3°C (typical), 0.5°C (max)

Resolution: 0.1°C

Other Parameters:

Output: 2 channels 4 - 20mA analog output + RS485 digital output

Work power: DC 9V - 28V

Work current: <6 mA + load current

Work pressure: <100bar

Work temperature: -40°C - 85°C

Oil temperature: -40°C - 120°C

Mechanical connector: G1/2” BSP

Electric connector: M8 * 1, 6pin

Cable: 6pin, 2 meters, UL20866 6*22AWG

EMC standard: EN 61000-6-4:2007 & EN 61000-6-2:2005

Housing: 316 stainless steel

IP rating: IP66

Weight: 250g
