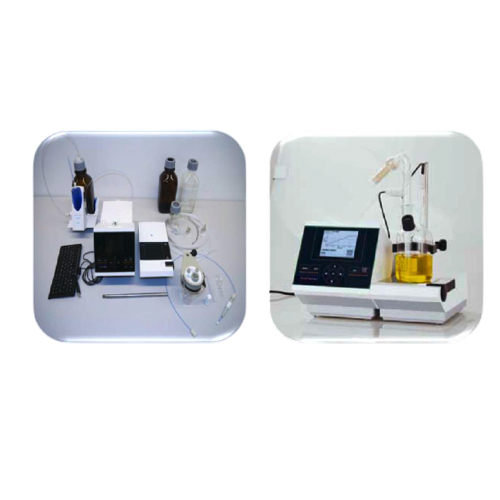

WGM KF 750 Karl-Fischer-Titrator

Measuring input indicator electrode: Connector for double platinum electrode with 2 × 4 mm sockets

Measuring input generator electrode: Sockets: 2 × 4 mm, coded in color

Interfaces: 3 × USB (2 × USB-A and 1 × USB-B); 2 × RS-232-C; 1 × LAN

Display: 3.5 inches - 1/4 VGA TFT graphic color display with 320 × 240 pixels

Housing material: Polypropylene

Dimensions: 15.3 × 18 × 29.6 cm (W × H × D)

Front keyboard: Polyester coated

Weight: 2.3 kg for basic device without magnetic stirrer M 235 or M 235 KF

Ambient conditions: Ambient temperature: +10 … +40°C for operation and storage; Humidity according to EN 61010, Part 1: max. relative humidity 80% for temperatures up to 31°C, linear decrease down to 50% relative humidity at 40°C

Power supply: 100 – 240 V; 50/60 Hz; Power input: 30 VA
