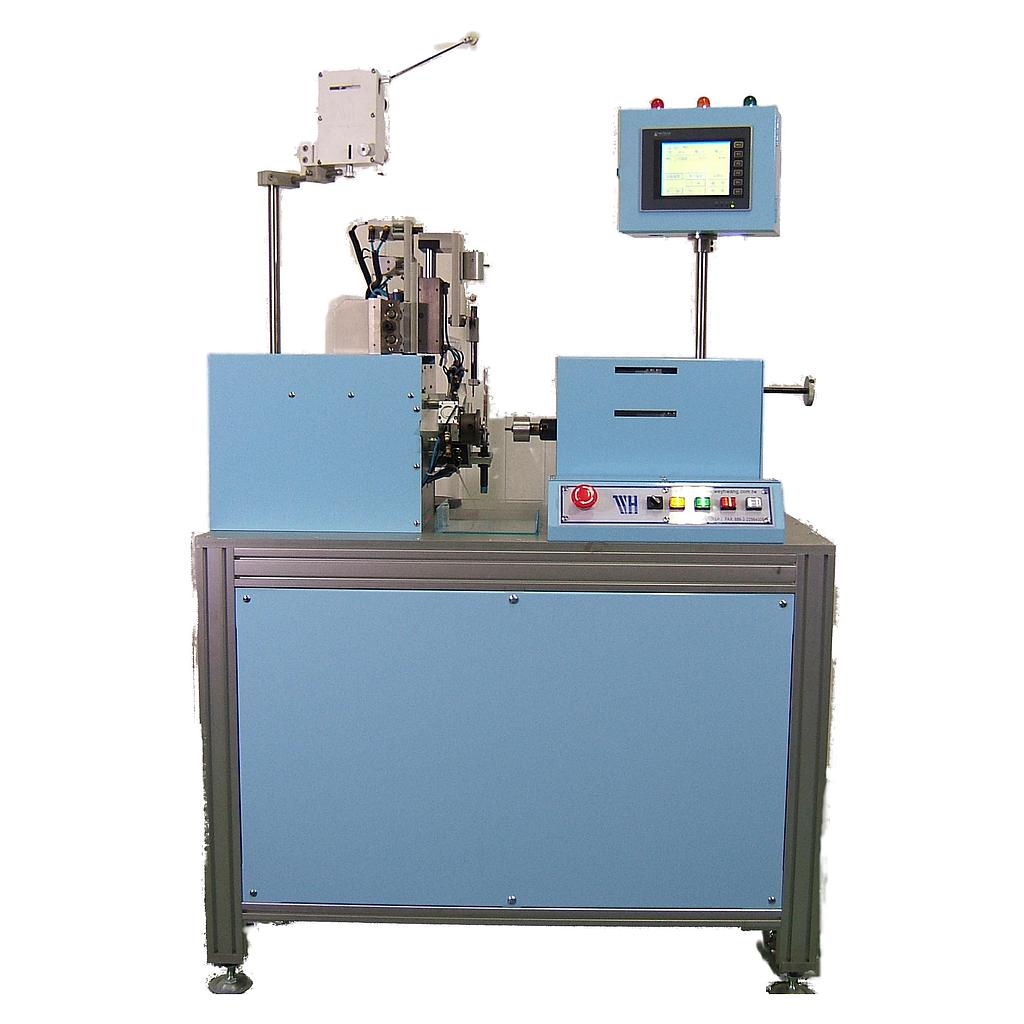

Controlled system: CNC 6 Axis AC servo motor synchronizing control
Maximum speed: 3000 rpm (Max)
Minimum angel setting: 360∘/ turn,Setting unit = 0.1∘
Spindle stop precision: ± 0.1∘
Nozzle moving distance: 40mm; Movement unit 0.01mm
Wire size range: 0.04mm - 0.3mm
Maximum winding diameter: 40mm
Maximum winding width: 10mm
Wire bonding method: Hot air / Alcohol
Heat gun power: 270W
Power Source: Single phase 220V, 50/60 Hz
