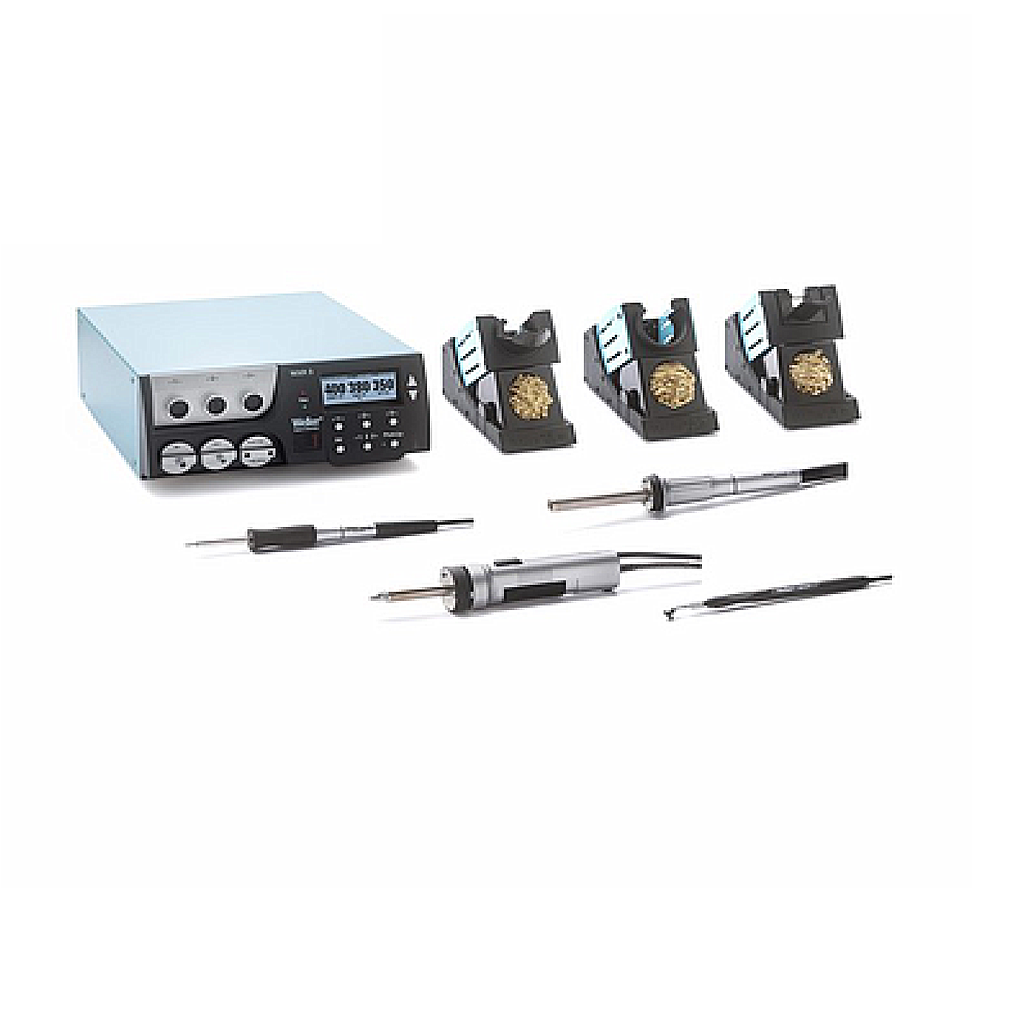

Weller Soldering, Desoldering and Hot Air

Dimensions W x D x H (mm): 273 x 235 x 102
Voltage: 230 V (50/60 Hz)
Max Vakuum: 0,7 bar
Capacity l/min: 18
Heating output: 420 W (600 W)
Weight (ca) in kg: 6.7
Built in pump: Periodic duty 30/30 s
Temperature stability °C: ±2
Temperature range (depends on tool) °C: 100 - 450 (550)
Display: 255 x 128 dots / Backlighting
Fuse overcurrent release: 2,0 A
Temperature accuracy °F: ±17
Channels: 3
USB: USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
IPC Conforming: ja
Order Information: WXR 3 Rework - Soldering, Desoldering and Hot Air, WXHAP 200 Set Hot Air Irons, WXDV 120 Set Desoldering Iron, WXP 65 Set Power Response Heating Technology, WVP Adapter for footswitch for WR 3000M, WXR 3 Sets and WR 2
