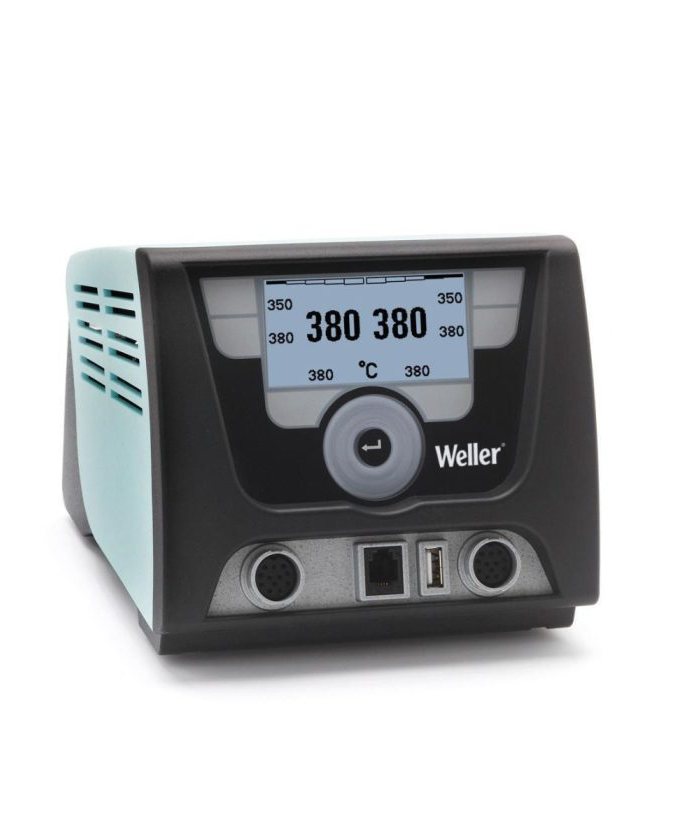

WELLER WX2 Soldering Station (100 – 550 °C / 210 – 999 °F)

Dimensions L x W x H: 174.0 x 154.0 x 135.0mm

Automatic Tool Identification: Yes

Benchtop Controller: Yes

Equipotential Bonding: Yes

Equipotential Bonding Socket: Via 3.5 mm pawl socket on back of device

ESD Safe: Yes

Fuse: T2A

Interface: 1x USB, 2x RS232, 1x Switching Output

Multilingual Display: Yes

Number of Channels: 2

Power: 200 W (255 W)

Temperature Accuracy °C: ±9 °C

Temperature Accuracy °F: ±17 °F

Temperature Range (Depends on Tool): Adjustable from 50°C – 550°C (150°F – 999°F) Adjustable temperature range varies among tools

Temperature Range °C: 100 – 550 °C

Temperature Range °F: 210 – 999 °F

Temperature Stability °C: ±2 °C

Temperature Stability °F: ±4 °F

Traceability: Yes

USB: USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types

Voltage: 220 V

Weight: 3.45 kg
