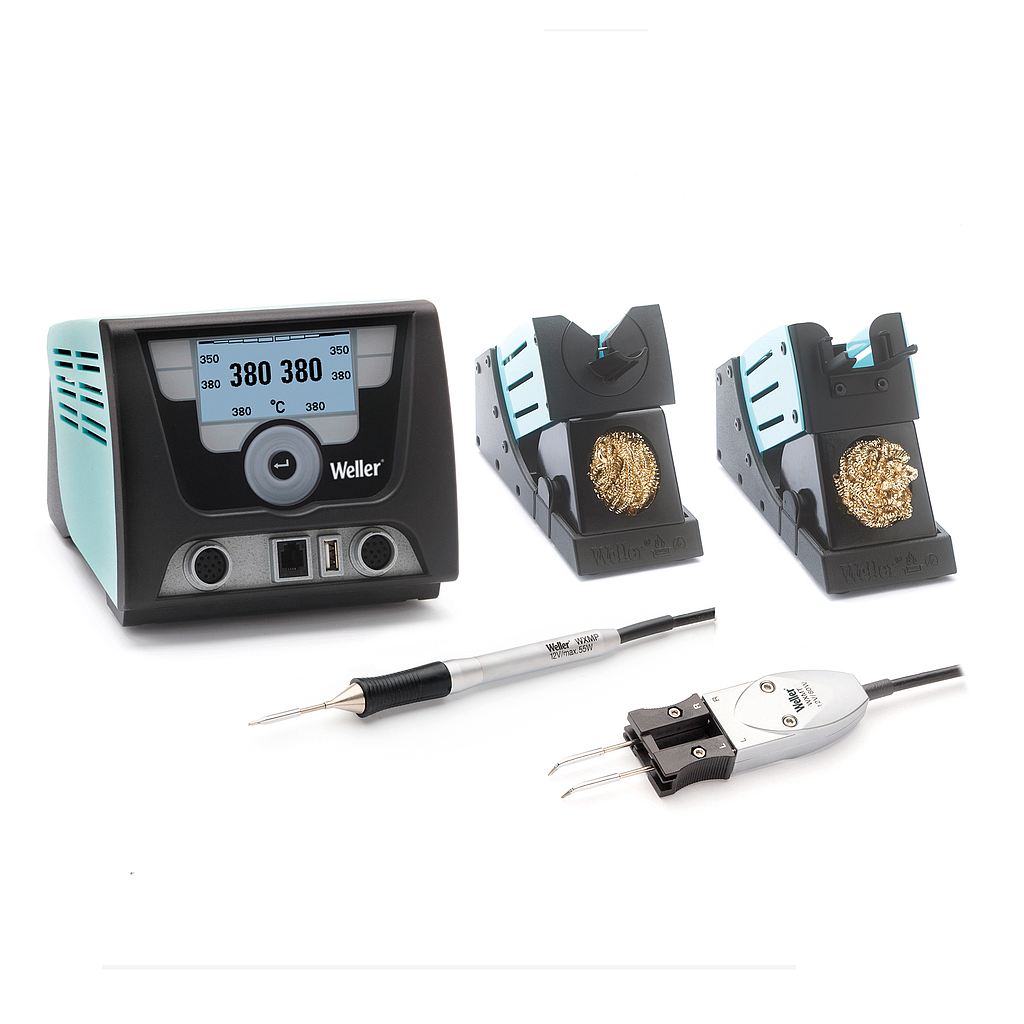

Weller WX 2021 Set Power unit with 2 channels

ManufacturerWELLER(View more products from this manufacturer)
ModelWX2021 Set
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

WX 2021 Set Power unit with 2 channels

This station is ESD safe.
Dimensions L x W x H:170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch)
Weight:approx. 3,2 kg
Channels:2
Power supply:230 V, 50 Hz
Power consumption:200 W (255 W)
Protection class:I
Temperature range:Adjustable from 50°C - 550°C (150°F - 999°C)
Adjustable temperature range varies among tools
Temperature accuracy:± 9°C (± 17°F)
Temperature stability:± 2°C (± 4°F)
Equipotential bonding:Via 3,5 mm pawl socket on back of device
Material touch panel:Made of antistatic coated material
Dimensions touch panel:74 x 38 mm
Resolution:255 x 127 (128) dots
Display backlighting:4 LEDs
Equipotentional bonding:

The 3,5 mm switch offers four different options:
a) Hard grounded without plug (original delivery)
b) Equipotential bonding: with plug, compensation line on center contact
c) Potential free: with plug
d) Soft grounded: with plug and soldered resistor grounded via selected resistor

USB interface:USB interface in front of firmware updates, parameterization and monitoring
USB interface supports all standard USB flash drive types
T

WXMP Set Active Tip Heating Technology

Voltage (heater):12 V
Heating output:40 W (55 W with RT 11)
Heat-up time:approx. 3 s 50°C - 350°C (120°F - 660°F)
Temperature range:100°C - 450°C (212°F - 850°F)
Tip type:RT
Connectable to:

Weller WX Stations

WXMT Set Micro desoldering tweezer

Voltage (heater):12 V
Heating output:80 W (2 x 40 W)
Heat-up time:approx. 3 s 50°C - 350°C (120°F - 660°F)
Temperature range:100°C - 450°C (212°F - 850°F)
Tip type :RTW series
Connectable to:

Weller WX Stations

Part number: T0053422699

Datasheet
