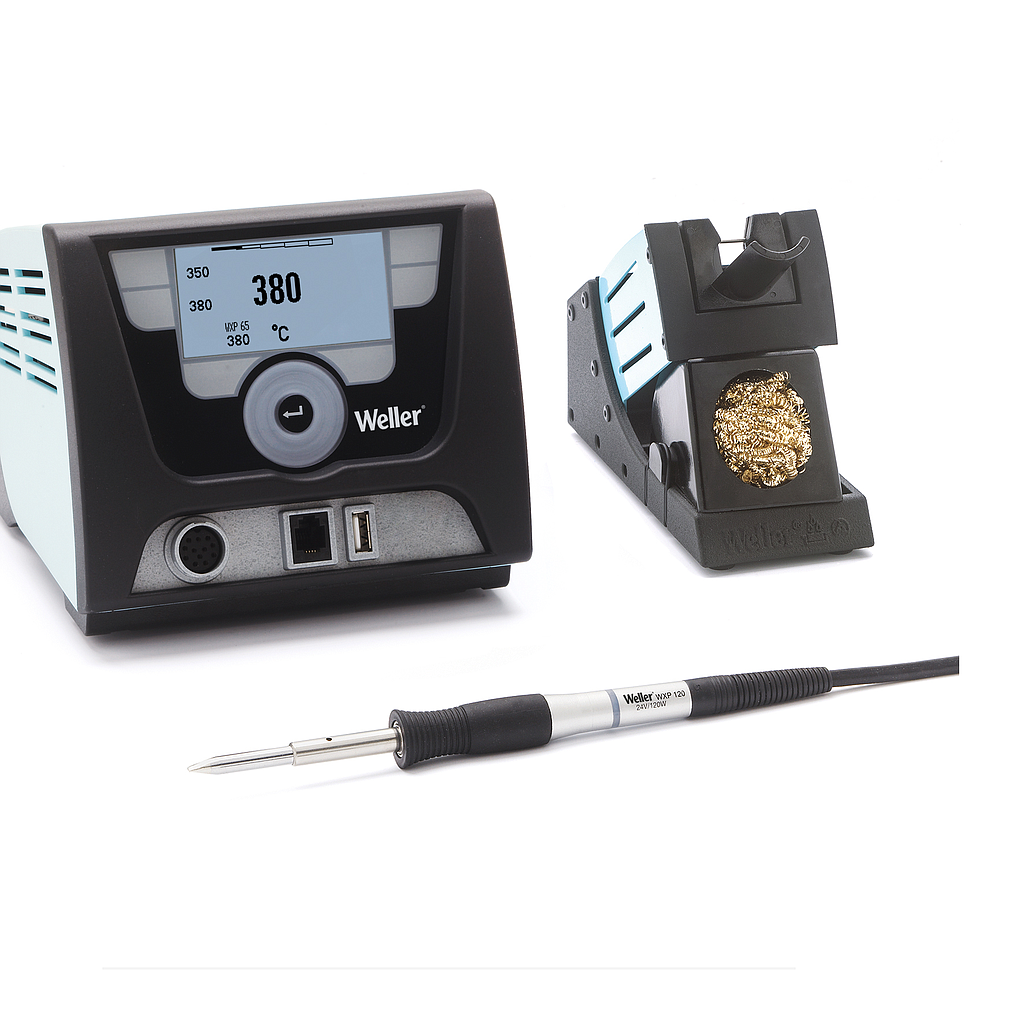

WX 1010 Set Power unit with 1 channe | |
| This station is ESD safe. |
| Dimensions L x W x H: | 170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch) |
| Weight: | approx. 3,2 kg |
| Channels: | 1 |
| Power supply: | 230 V, 50 Hz |
| Power consumption: | 200 W |
| Protection class: | I |
| Temperature range: | Adjustable from 50°C - 550°C (150°F - 999°C) Adjustable temperature range varies among tools |
| Temperature accuracy: | ± 9°C (± 17°F) |
| Temperature stability: | ± 2°C (± 4°F) |
| Equipotential bonding: | Via 3,5 mm pawl socket on back of device |
| Material touch panel: | Made of antistatic coated material |
| Dimensions touch panel: | 74 x 38 mm |
| Resolution: | 255 x 127 (128) dots |
| Display backlighting: | 4 LEDs |
| Equipotentional bonding: | The 3,5 mm switch offers four different options: |
| USB interface: | USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
WXP 120 Set Fast Response Heating Technology | |
| Voltage (heater): | 24 V |
| Heating output: | 120 W |
| Heat-up time: | approx. 14 s 50°C - 380°C (120°F - 660°F) |
| Temperature range: | 100°C - 450°C (212°F - 850°F) |
| Tip type: | XT series |
| Connectable to: | Weller WX Stations |
Part number: T0053418699
