Bộ hàn khò sửa chữa đa năng SODM19

Includes:

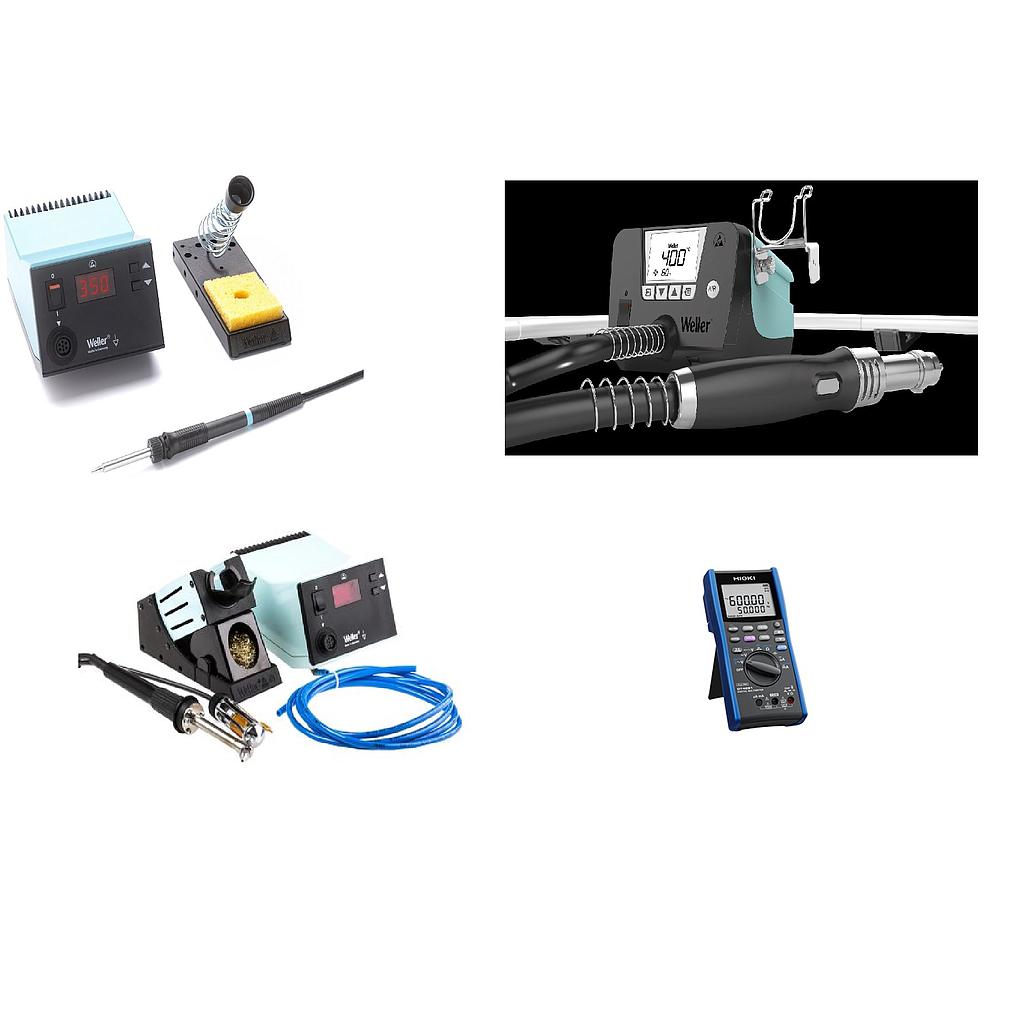

1) Weller WSD 81i soldering machine set - 7 sets

* Welding machine PUD 81i

Automatic temperature calibration, number display

Capacity: 95 W

Number of channels: 1

Soldering connection according to Via 3.5mm socket

Power supply: 230VAC

Dimensions: 166x115x101mm

* WSP 80 hand soldering

Voltage: 24V

Capacity: 80W

Cooling temperature: 100 ° C - 450 ° C (212 ° F - 850 ° F)

Heating time: 10 s (50 ° C - 350 ° C)

TIP type: LT

2) Knife-welding TIP - 7 pcs

Use for WSP80 welding hand

3) WTHA hot air station 1

Dimensions: 212 x 167 x 122 mm

Weight: 1.95 kg

Voltage: 230 V

Output power: 900 W

Number of channels: 1

temperature range: 50 - 600 ° C

Accuracy: ± 30 ° C

Display: LCD screen

Airflow: 5 - 60 liters / 20 ° C, 5 - 110 liters / 300 ° C (liters / minute)

3) Set of hot air blower head - 3 sets

Used for WTHA hot air station 1

4) Weller WDD 81V - 3 Sets

Dimensions (mm): 166 x 115 x 101 mm

Number of channels: 1

Voltage: 230V

Screen: display 3 numbers

Temperature range (° C): 50 - 550 ° C

Capacity: 95 W

Supplied accessories: Rack, DSX 80 suction arm, suction nozzle DX 112 and DX 113.

5) Set Used for vacuum suction WDD 81V

6) Portable multimeter - 1 set

DCV: 60.000 mV to 1000.0 V /±0.025 % rdg. ±2 dgt.

ACV (True RMS): 60,000 mV to 1000.0 V / ±0.2% rdg. ± 25 dgt

DCV + ACV (True RMS): 60.000 mV to 1000.0 V /±0.2 % rdg. ±25 dgt

Resistivity: 60.000 Ω to 600.0 MΩ /±0.03 % rdg. ±2 dgt.

Conductivity: 600.00 nS /±0.03 % rdg. ±2 dgt.

DCA: 600.00 μA to 10.000A / ±0.05 % rdg. ±5 dgt.

ACA (true RMS): 600.00 μA to 10.000A / ±0.6 % rdg. ±5 dgt

Capacitors: 1,000 nF to 100.0 mF / varying1.0% rdg. ± 5 dgt.

Check continuously, diode

Frequency ACV, DC+ACV, ACA: 0.5 Hz to 500.00 kHz /±0.02 % rdg. ±3 dgt.

K type temperature: -40.0 ° C to 800.0 ° C (optional probe DT4910)

Other functions: Filter function (Remove harmonic noise, use only at 600 VAC, 1000 VAC ranges), Display value hold, Auto hold, Max / Min value display, Sampling select, Relative display, Measurement memory (400 data), Auto- power save, USB communication (option), 4-20 mA% conversion

Display: 5-digits LCD, max. 60000 digits
