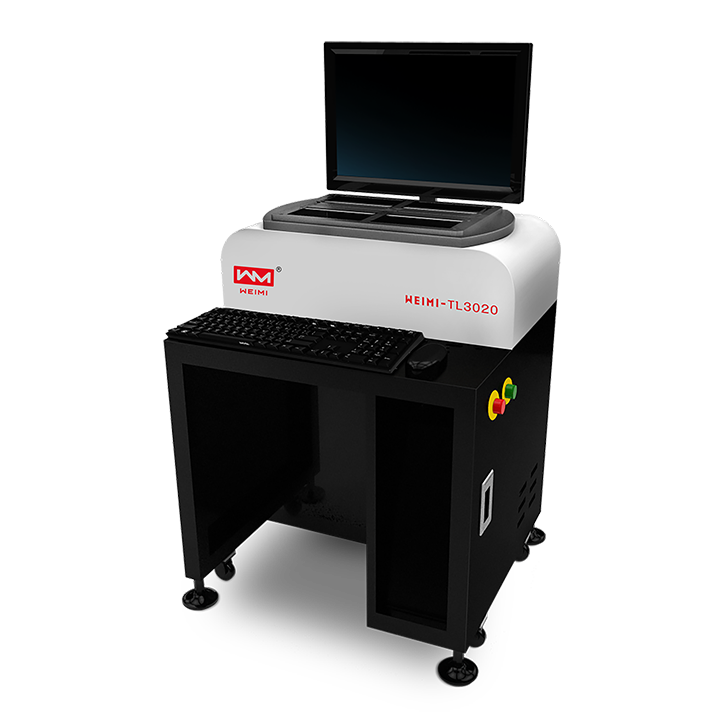

Weimi WEIMITL3020 Laser Detector (300/200/40 mm)

Overall Dimensions L*W*H (mm): 600*650*1265

Measuring Range (mm) (Y/X/Z): 300/200/40

Weight (kg): 85

Laser: Import/Domestic (optional)

Linear Accuracy (um): X/Y Accuracy ≤3 + L/200, Z Accuracy ≤4+ L/50 ("L" refers to the measured object length in mm)

Repeatability (mm): ≤0.003

Positioning Accuracy (mm): ±0.001

Temperature & Humidity: 15-30°C, Relative humidity: 20-80% (Non-condensing)

Power Supply: 220V±10%（AC） 50HZ

Machine Credit: 500W
