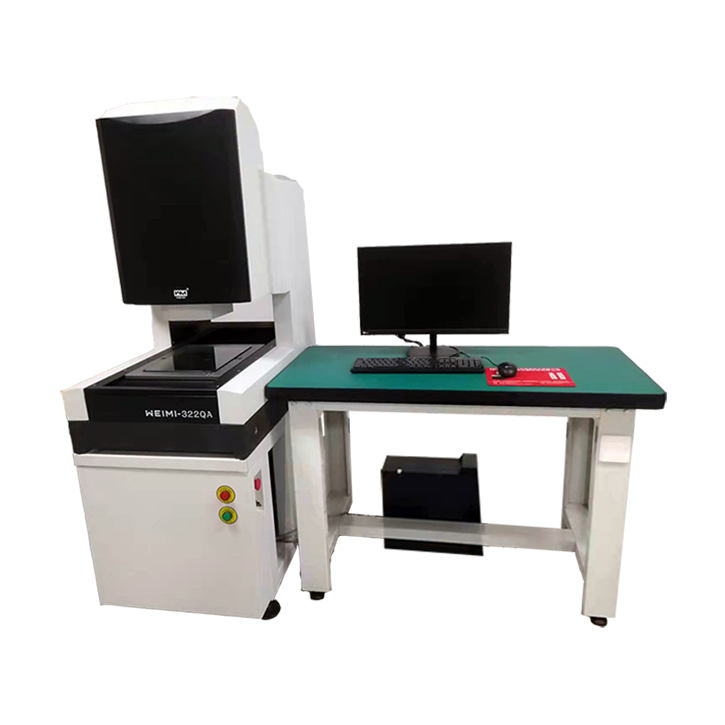

Weimi WEIMI322QA Small Gantry Image Measuring Instrument (200/300/200 mm)

Overall dimension (L*W*H): 950*520*1700 mm

Measuring range (Y/X/Z): 200/300/200 mm

Workbench

Working desk: 460*360 mm

Glass surface: 360*260 mm

Load-bearing: 35 kg

Total weight: 300 kg

Image measurement and CCD: weimi20 1/3 inch Color high-resolution camera 520TV line（Optional）

Measurement system

Zoom objective: Navitar fully automatic zoom lens imported from the United States

Video magnification: 30-225X

Object field of view: 10.6-1.6 mm

Working distance: 90 mm

Linear accuracy (µm): X/Y Accuracy ≤2.2+L/200 Z, Accuracy ≤4+L/50 ("L" refers to the measured object length in mm)

Repeatability: ≤0.003mm

Positioning accuracy: 0.001mm

Illumination: Coaxial light/LED surface light, brightness adjustable

Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)

Power supply: 220V±10% (AC) 50Hz

Machine credit: 1100W
