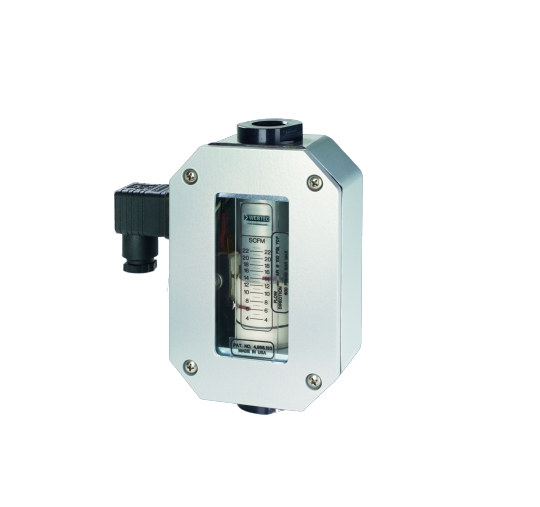

Webtec WPR Flow Monitor with Flow Rate Transmitter (Hydraulic:560 lpm, Pneumatic:1300 SCFM)

Measuring accuracy: ± 2.0 % of full scale

Repeatability: ± 1% of full scale

Flow measuring range: Hydraulic: 0.2 - 560 lpm (0.05 - 150 US gpm), Pneumatic: 1.5 - 1300 SCFM

Maximum operating pressure:

Hydraulic: Aluminium & brass monitors 240 bar (3000 psi), stainless steel 410 bar (5900 psi)

Pneumatic: Aluminium & brass monitors 40 bar (580 psi), stainless steel 70 bar (1000 psi)

Maximum operating temperature: 85°C (185°F)

Oil Meters:

Water Meters: Tap Water @ 21°C (1cSt), 1.0 sg: DTE 25 @ 43°C (40 cSt), 0.873 sg

Pneumatic: Air @ 21°C, 1.0 sg and 6.9 bar (100 psi)

Degree of protection*: NEMA type 4x *With cable connected

Calibration:

Oil monitors: DTE 25 @ 43°C (40 cSt), 0.873 sg

Water monitors: Tap water @ 21°C (1 cSt), 1.0 sg
