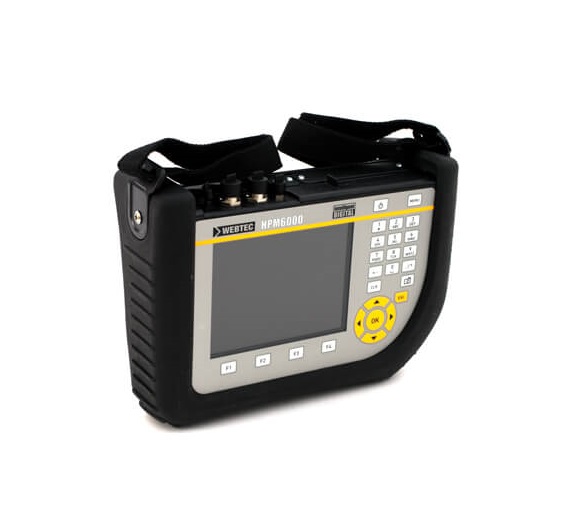

Webtec SR-HPM-6016-05-0C-CAN Hydraulic Data Logger

- Functional specifcation:

Operating temperature: 0 to 50 °C (32 - 122 °F)

Degree of protection : IP64 (EN60529)

- Electrical specifcation:

Internal: Lithium ion pack 7.4 VDC/4500 mAh; Battery life with 3 CAN sensors >8 hours

External: Input -100-240 VAC, Output - 24 VDC/2500 mA

- Memory:

Via USB drive - 1GB Max. (not included)

Via MicroSD - 2 GB Max. (included)

Internal memory - 10 MB

- Input / Outputs:

Intelligent digital inputs:

2 CAN bus networks each with 16 channels

Scanning rate:

1-3 sensors = 1ms

4-6 sensors = 2ms

7-8 sensors = 4ms

Connection - M12 x 1, 5-pin SPEEDCON

D in /out - scanning rate 1 ms: Connector M8 x 1, 4 pin, male

Digital trigger input - Impedance 1k Ohms, Levels: high>7..24 VDC, low<1 VDC

Digital trigger output - Switch up to +24 VDC - max 20mA

USB Slave - USB 2.0, Socket type B

USB host - USB 2.0, Socket type A

Ethernet - 10/100 Mbit/s- IEEE 802.3, RJ45

Auxiliary inputs (for measuring current and voltage):

Scanning rate ms ( 0.1 ms on one channel per auxiliary card)

Connection M12 x 1 5 pin socket

Voltage measuring range -10 to +10 VDC ( confgurable)

Current measuring range 0 or 4 to 20 mA

Supply +18 to +24 VDC, max 100mA

- Construction material:

Housing material: ABS/PC

Housing protective shield: TPE

Dimensions, w x h x d, mm (inches): 257 (10) x 74.5 (3) x 181 (7)

Weight: 1550 grams (HPM-6016)

Display: TFT-colour LCD, Visible area 115 x 86 mm, Resolution 640 x 480 pixels

- PC Software:

HPM6000 is supplied with HPMComm software to enable real-time datalogging from a PC, or transfer of data to a PC for

further analysis and graphing. HPMComm is Windows compatible software (32 bit only).
