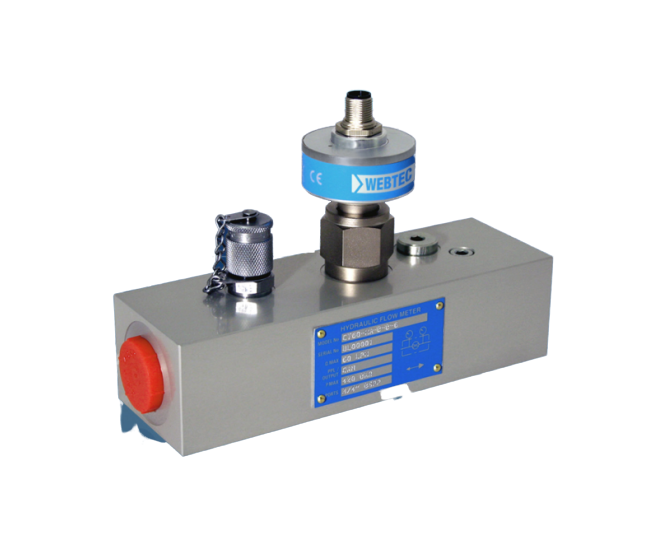

Webtec CT15-5V-B-B-6 Turbine Flow Meter With Conditioned Output (1-15 lpm; 420 bar; 5V)

Main ports: 1/2” BSPP

Top ports: 1/4” BSPP

Flow range: 1 - 15 lpm

Max. pressure: 420 bar

- Functional specifcation:

Ambient temperature: 5 to 40 °C (41 - 104 °F)

Fluid type: Oils, fuels, water glycol, water oil emulsions

Fluid temperature: 5 to 90 °C (41 - 194 °F) continuous use.

Accuracy: 15 to 100% of range - 1% of indicated reading

Below 15% fxed accuracy of 1% of 15% of full scale (CT15 is 1% of full scale)

Repeatability: Better than ± 0.2%

Response Time: 50 m/s + 1 period

Degree of protection*: CT-mA, CT-5V– IP66 (EN60529) *With cable connected

- Electrical specifcation:

Supply voltage (VS): mA & 5V = 12 - 32 VDC

Current output: 4 - 20 mA, 3 wire loop, max loop resistance = (VS x 50) - 200 ohms

Voltage output: 0 - 5 VDC, current consumption = 10 mA, minimum load 20K ohms

- Construction material:

Flow body: 600/800/1500 High tensile Aluminium 2014A T6

15/60/150/300/400 High tensile Aluminium 2011 T6

Internal parts: Aluminium, Steel, Stainless Steel.

Transducer: Body and nut -steel 212A42 electroless nickel plated, Housing and Lid - Aluminium 2011 T3

Seals: Viton seals as standard EPDM are available - please consult sales office.
