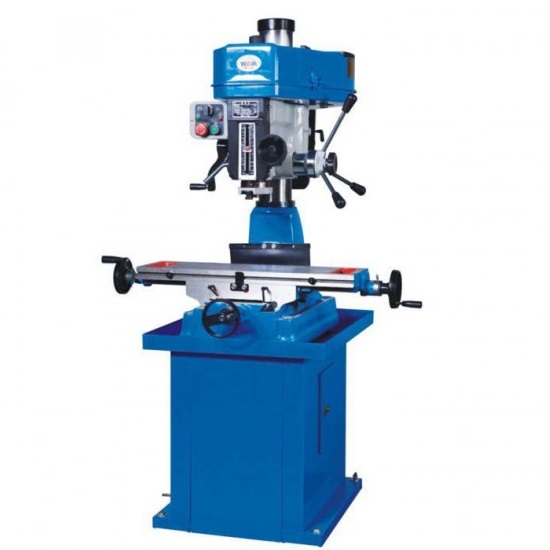

WDDM ZX7032 Drilling & Milling Machine (31.5mm; M20)

Capacity

Drilling capacity: 31.5mm

Tapping capacity: M20

Face milling capacity: 80mm

End milling capacity: 22mm

Motor

Motor type: Squirrel cage rotor

Motor power: 1500W 4P

Voltage: 380V 3 Phase 50Hz

Spindle

Spindle type: MT3 taper (3rd taper)

Spindle stroke (drill head): 130mm

Speed

Number of speed levels: 12 levels

Spindle speed range: 100~2150V/P

Speed change mechanism: Puley + Curoa

Table

Table type: Cross

Table size: 730x210mm

Table vertical travel: 450mm

Horizontal travel of table: 170mm

Weight & size

Distance from spindle to table: 460mm

Distance from spindle to cylinder: 202mm

Machine height: 1100mm

Packing size: 860x770x1240mm

Weight: 250/285kgs
