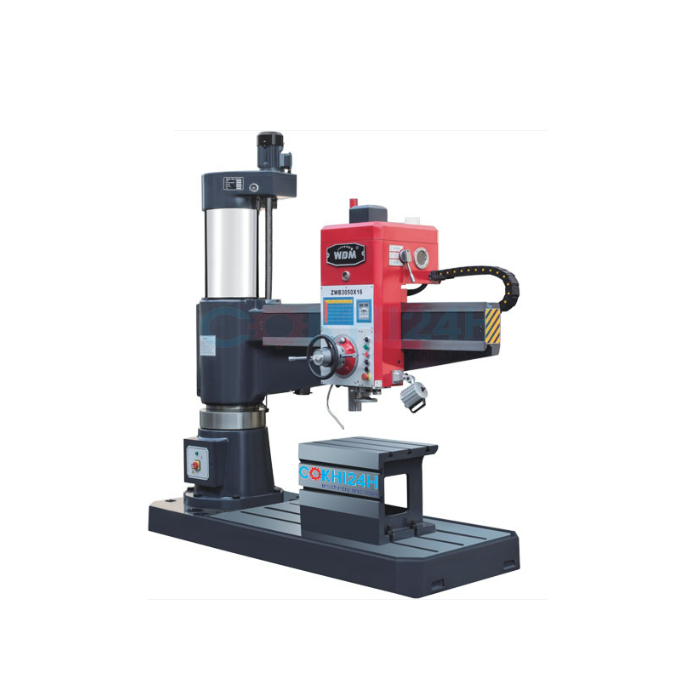

WDDM ZWB3050X16 Radial Drilling Machine (4kW)

Drilling capacity: Ø50mm

Tapping capacity: M30

Motor power: 4kW

Spindle Type: MT5

Spindle stroke (drill head): 315mm

Drill head horizontal stroke: 1250mm

Speed: 20-200/200-2000v/p

Speed Levels: No level

Automatic feed rate: 13 - 127mm/min

Working table size: 630x500x500mm

Column diameter: 350mm

Distance from spindle to base: 1220mm

Maximum distance from spindle center to column: 1600mm

Minimum distance from spindle center to column: 350mm

Base dimensions: 2400x1000x200mm

Machine dimensions: 2677x1000x2650mm

Packing dimensions: 2677x1120x2600mm

Weight: 3400/3800kg
