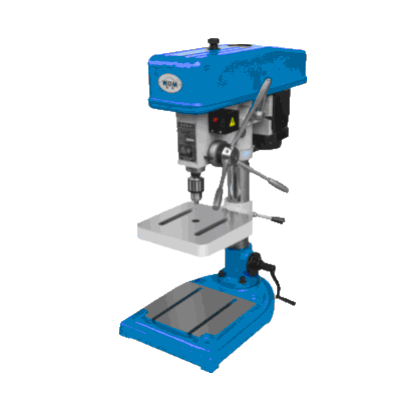

WDDM Z516D Bench Drilling Machine (550W)
ManufacturerWDDM(View more products from this manufacturer)
ModelZ516D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max,tapping capacity: 16mm
Diameter of column: 70mm
Spindle travel: 100mm
Distance spindle to column: 193mm
Max.distance spindle nose to table: 315mm
Max.distance spindle nose to base: 556mm
Spindle taper: MT2
Spindle speeds range: 480~4100r/min
Spindle speeds series: 5speeds
Dimension of table surface: 200x230mm
Dimension of base: 528x360mm
Overall height: 1037mm
Power of motor: 370/550W
G.W/N.W: 90/108kg
Packing dimension: 77x42x94cm
