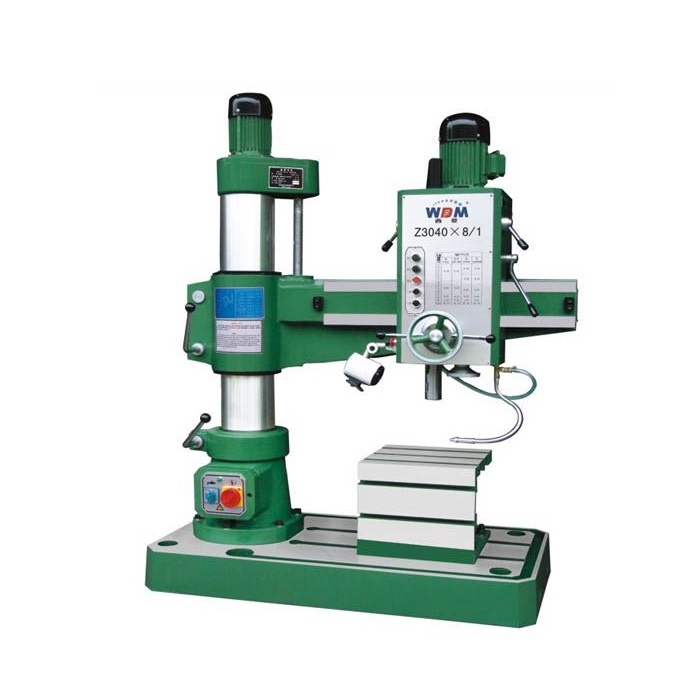

WDDM Z3040X8/1 Radial Drilling Machine (1500W)
ManufacturerWDDM(View more products from this manufacturer)
ModelZ3040X8/1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Drilling capacity: Ø40mm
Tapping capacity: M27
Motor power: 1500W
Spindle type: MT4
Spindle stroke (drill head): 240mm
Cross stroke: 500mm
Speed: 75-1220rpm
Speed levels: 6 levels
Spindle feeds: 0.1 - 0.16 - 0.25mm/r
Working table size: 400x400x350mm
Column diameter: 200mm
Distance from spindle to base: 120-860mm
Maximum distance from spindle center to column: 820mm
Minimum distance from spindle center to column: 320mm
Base dimension: 1370x720x160mm
Machine dimension: 1407x720x1885mm
Packing dimension: 1550x770x2100mm
Weight: 1140/1230kg
