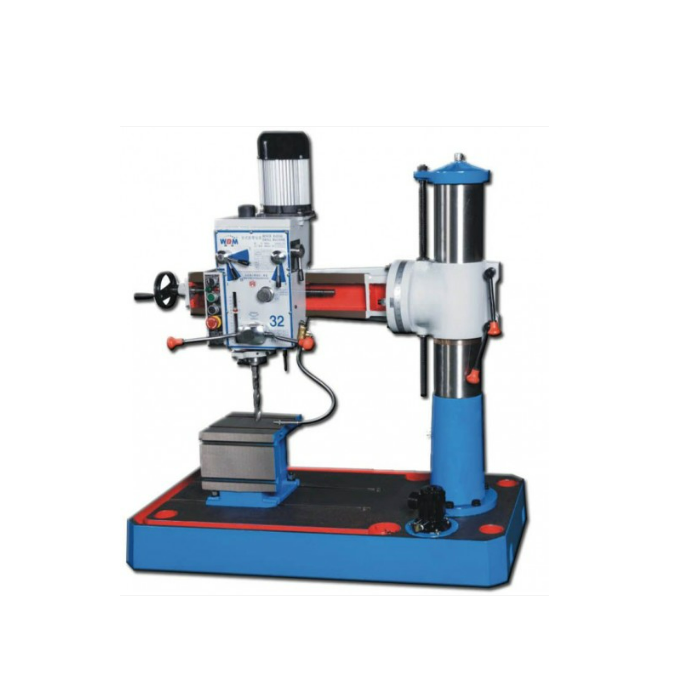

WDDM Z3032X7P Radial Drilling Machine (750W)

Max.drilling capacity (mm): 31.5

Max.Tapping capacity (mm): cast 20 steel 16

Distance spindle axis to column generating line (mm): 300-700

Diameter of column (mm): 150

Spindle taper: MT3

Spindle travel (mm): 130

Spindle speeds range (r/min): 100-1600

Spindle speeds series: 8

Range of Spindle feeds (mm/r): 0.08 0.14 0.23

Rotary angle of rocker in horizontal plane (°): 360

Distance spindle nose to working surface of base (mm): 275-680

Dimension of worktable (mm): 250X250X250

Dimension of base (mm): 1200X625X155

Overall size (mm): 1235X625X1230

Power of Main motor (w): 750

G.W/NW (kg): 540/500

Packing dimension (cm): 127X69X137
