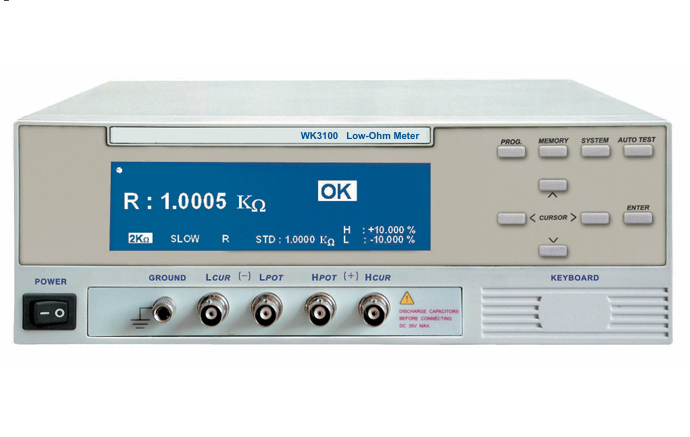

Wayne Kerr WK3100 Programmable Low-Ohm Meter (0.001 mΩ ~ 1.9999MΩ)

Measurement Range:

Level: 0.001 mΩ ~ 1.9999MΩ

Pulse: 0.001 mΩ ~ 1.9999Ω

Level:

Range: 20m-2MΩ

Resolution: 0.001m-0.0001MΩ

Accuracy: ±( 0.1% of reading+ 5 digits) for slow speed

Pulse:

Range: 20mΩ-2Ω

Resolution: 0.001mΩ-0.0001Ω

Accuracy: ±(0.2-0.5% of reading+ 10 digits) for slow speed

Test speed:

Level: Slow: 135 Fast: 68 Max.:14 ms

Pulse: Slow: 310 Fast: 170 Max.:140 m

Open Circuit Voltage: 20 mΩ~ 20 Ω <1.0V, 200 Ω ~ 2 MΩ < 5.5V

Temperature Coefficient: ±( 0.01% + 0.5 digits) / °C

Test Mode: 4-Wire test

Display: LCD 240 * 64 Graphic display, 4 1/2 digitals

Interface: RS232/HANDLER combinatorial interface

Memory: Up to 100 sets of memory

Accessories: Test clips, Power cord, Operation manual, Certificate of calibration

Power: 115/230 V ±10%, 50/60 Hz

Dimensions: 270(W) x 110(H) x 310(D) mm

Weight: 4.5 kg
