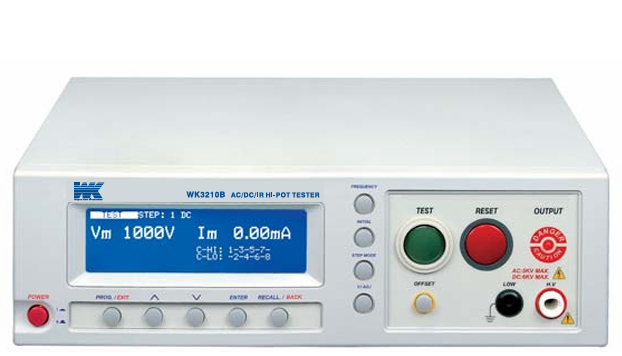

Wayne Kerr WK 3210B Innovative Programmable Hi-Pot Tester (1 ~ 9.999 MΩ, 2 Ports phase)

Scan Test: 2 Ports phase

Without Voltage Test: AC/DC/IR

Output Voltage: AC: 0 ~ 5000V/ DC: 0 ~ 6000V.

Digital setting (4 digits): 10V/ step, adjustable with < / > keys

Voltage Regulation: ≤1 % + 5V

Waveform & Frequency: Sine Wave 50Hz / 60Hz selectable

Voltmeter Accuracy: 4 digits, ± 1% of reading +5 digits

Output Current: AC: 0.001mA ~ 15.00mA, DC: 0.001mA ~ 7.5mA

Current Meter Accuracy: 4 digits, ± 1.5% of reading +5 digits

Insulation Resistance Test:

Measuring Voltage: DC: 100 ~ 1000V, Digital setting, 10V / steps

Voltmeter Accuracy: DC: 100 ~ 1000V, Digital setting, 10V / steps

Measuring Range: 1 ~ 9.999 MΩ

Measuring Accuracy:

≥500V: 1~1000MΩ, 5% of reading

≥500V: 1001~9999MΩ, 15% of reading

<500V: 1~200MΩ, 10% of reading

<500V: 201~9999MΩ, 15% of reading

Judgement: 0.1 ~ 999.9 Sec ( 20 mS)

Waiting time: 0.1 ~ 999.9 Sec ( 20 mS)

Dimension: 365(W) x 105(H) x 350(D) mm

Weight: 10kg

Accessories: Operation Manual, Power cord, 3P-2P AC adapter plug, High test lead wire / 1 meter long,2A Fuse / fast blow(in fuse holder), Certificate of calibration
