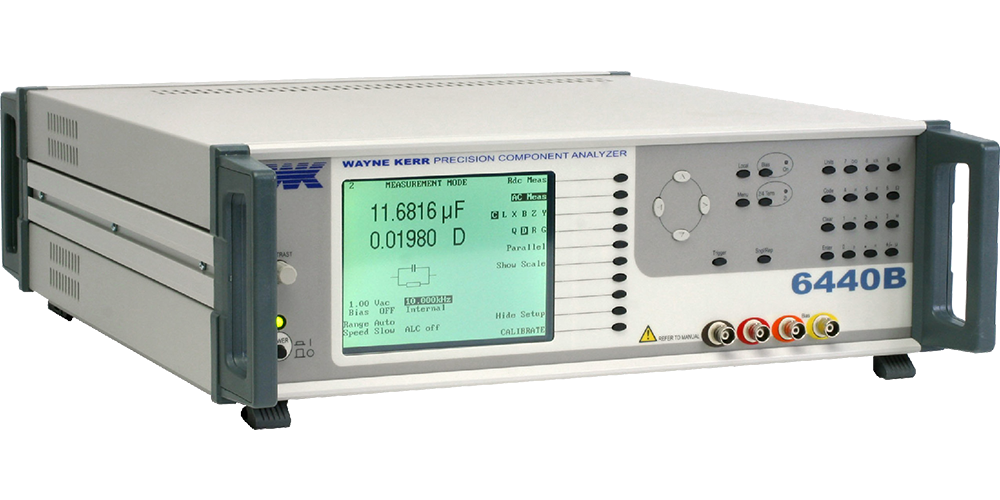

Wayne Kerr 6430B Precision Component Analyzers (20 Hz ~ 500 kHz)

Measurement Function:

Inductance (L), impedance (Z), DC resistance (Rdc) and capacitance (C)

Series or Parallel Equivalent Circuit C+R, C+D, C+Q, L+R, L+Q

Series equivalent circuit only X+R, X+D, X+Q

Parallel equivalent circuit only C+G, B+G, B+D, B+Q

Polar Form Z + Phase Angle, Y + Phase Angle

Frequency Range: 20 Hz to 500 kHz > 1000 steps ( > 1500 steps with analysis option fitted)

Drive Level(Rdc): 100 mV or 1 V with 100 Ω source resistance

Internal DC Bias Supply: 2V with rapid charge capacitor bias

DC Bias Voltage (External): External supply of up to ±60 V may be connected via rear panel

Measurement Speeds:

4 speeds selectable

Up to 20 measurements per second for test frequencies ≧100 Hz

Measurement Ranges:

R, Z - 0.01 mΩ to > 2 GΩ

G, Y - 1 nS to > 2 kS

L - 0.1 nH to > 2 kH

C - 1 fF to > 1 F

D - 0.00001 to >1000

Q - 0.00001 to >1000

Rdc - 0.1 mΩ to > 10 MΩ

Accuracy:

L/C - ±0.05%

R - ±0.02%

Q - ± 0.05 %(Q + 1/Q)

D - ±0.0002(1+ D2)

Rdc - ± 0.1%

Accuracy varies with component range measurement speed and frequency

Input Specification:

Power supply 230 V AC ±10% or 115 V AC ±10% (selectable)

Mains frequency 50/60 Hz

150VA maximum consumption

Display:

High contrast monochrome LCD 320 x 240 dot with CFL back lighting

Visible area 115 x 86mm

Viewing angle 45°

Measurement Connections:

4 front panel BNC sockets

4-wire (Kelvin) measurements with screen at ground potential
