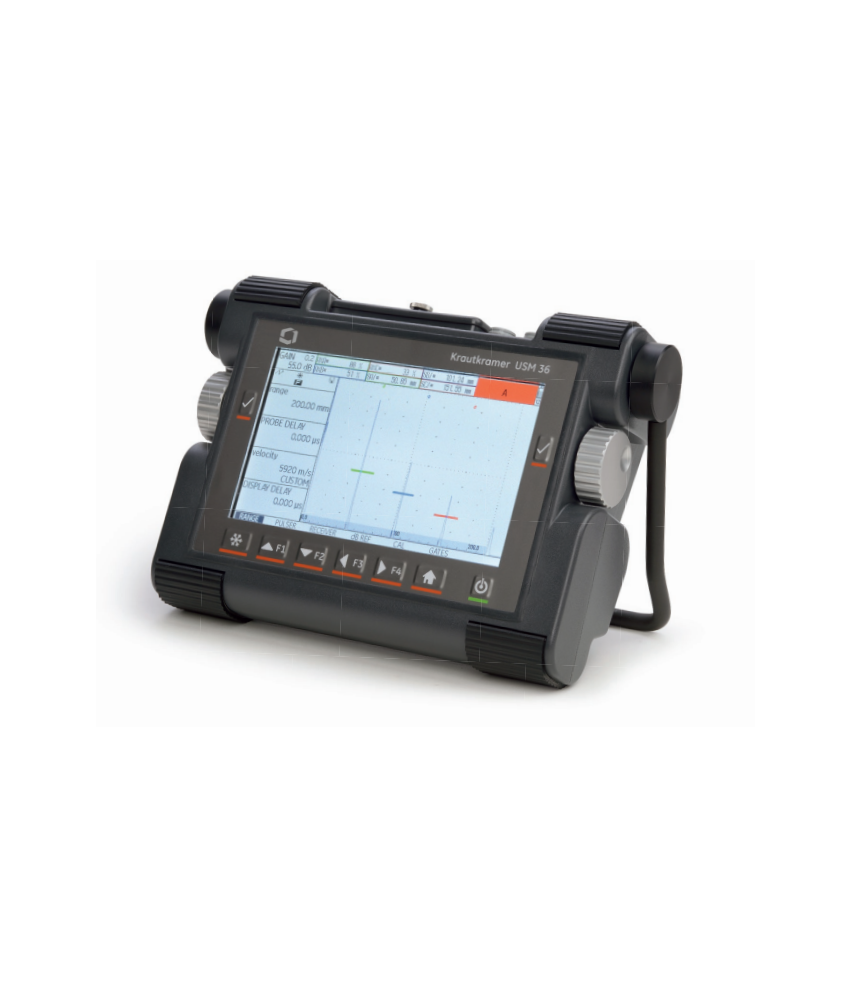

Display screen
Size Diagonal: 7”
Active range (W × H): 152.4 × 91.44 mm2
Resolution (W × H): 800 × 480 pixels
Range: 4 … 14,108 mm (555“) for longitudinal wave
Display
Display shift (delay): –15 … 3,500 μs
Probe delay: 0 … 1,000 μs
Velocity: 250 … 16,000 m/s
PRF: Automatically optimized 15 … 2,000 Hz, 3 automatic setting modes: Auto Low, Auto Med, Auto High, Manual
Connectors
Probe connectors: 2 × LEMO-1 or 2 × BNC
USB interface: USB type B connector
Service interface: LEMO-1B, 8 pin
Pulser
Pulser mode: Spike pulser, optionally: Square-wave pulser
Pulser voltage (SQ mode): 120 … 300 V, in steps of 10 V with a tolerance of 10%
Pulser falling/rising time: max. 10 ns
Pulser width (SQ mode): 30 … 500 ns, in steps of 10 ns
Pulser amplitude (Spike mode): low: 120 V, high: 300 V
Pulser energy (Spike mode): low: 30 nS, high: 100 nS
Damping: 50 ohms, 1000 ohms
Receiver
Digital gain: Dynamic range 110 dB, adjustable in steps of 0.2 dB
Analog bandwidth: 0.5 … 20 MHz
Equivalent input noise: <80 nV/√Hz
Filters:
Broadband: 1-5 MHz / 2, 2.25 MHz / 4, 5 MHz / 10 MHz / 13, 15 MHz
Rectification: Positive half-wave, negative half-wave,
full wave, RF signal
Gates
Independent gates:
Gates A and B (triggering by gate A),
Gate C (option, triggering by gate A or B)
Measurement mode: Peak, Flank, J-FLANK, FIRST PEAK
Memory
Card slot: SD-card slot for all standard SD-cards
Capacity: 8 GB, SD-card
Datasets: UGO data structure in ASCII
Reports: JPG or BMP format
General
Battery: Li-Ion, operating time: 13 hours with full charge / Charging method (standard): internal with power adapter / Charging method (optional): external charger / Charge level: proportional charge level indicator
Power adapter:
Universal power supply unit
100 … 240 VAC, 50/60 Hz
Size (W × H × D): 255 × 177 × 100 mm (10” × 7.0” × 3.9”)
Weight: 2.2 kg incl. battery
Languages: Bulgarian, Chinese, Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish
Damp heat and humidity (storage)
EN 60068 Part 2-30
6 cycles: 9 hrs at +25°C up in 3 hrs to
+55°C, 9 hrs at +55°C then down to
+25°C in 3 hrs, at 93% humidity
Vibration EN 60068 Part 2-6
2g per axis, 5 … 150 Hz, 1 oct/min, 25 cycles
Shocks EN 60068 Part 2-27
1000 cycles per axis, 15 g, 11 ms, half-sine
Enclosure IP66 according to IEC 60529
Operating temperature: –10 … 55°C
Cold operation: –10°C for 16 hrs, 502.5 Procedure II
Heat operation: +55°C for 16 hrs, 501.5 Procedure II
Storage temperature: –20 … +60°C, without battery
Cold storage: –20°C for 72 hrs, 502.5 Procedure I
Heat storage: +70°C for 48 hrs, 501.5 Procedure I
