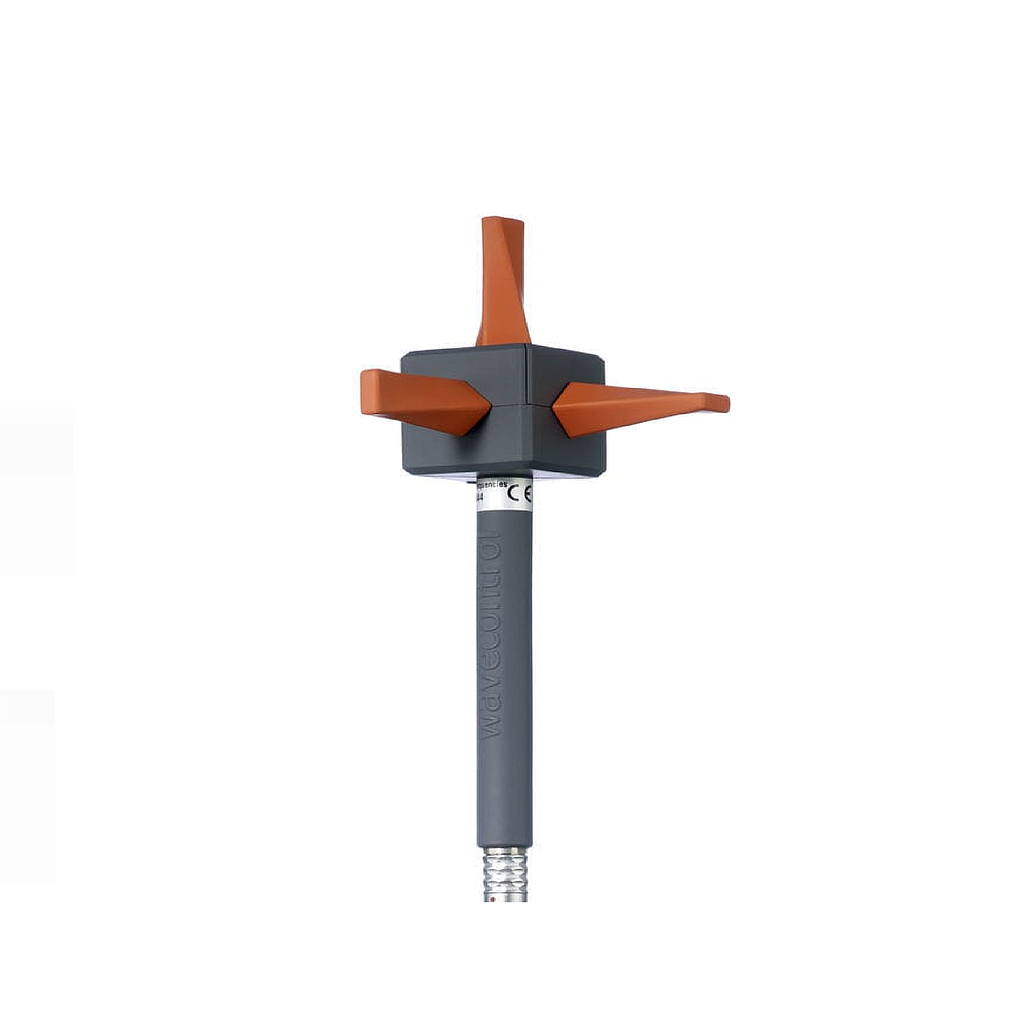

Wavecontrol WPT E Field Probe (Mobile frequency bands)

MAIN APPLICATIONS: Assessment of mobile telephony base stations
Compatible with Wavecontrol SMP2, MonitEM, MapEM
Frequency bands: 700-900, 1800-1900, 2100 and 2600
Sensor type: Isotropic, True RMS
Measurament range: 0.04 – 65 V/m (RMS)
Dynamic range: > 64 dB
Sensitivity: 0.04 V/m
Resolution: 0.07 dB
Interband attenuation: > 20 dB (1100 MHz) ; > 5 dB (2300 MHz)
Frequency response: ± 3.3 dB
Linearity: < ± 0.4 dB (0.2 - 50 V/m)
Isotropic deviation: < ± 1.7 dB
Calibration period: 24 months (recommended)
Calibration: ISO 17025 accredited (ILAC)
Operating temperature: - 30ºC to + 80ºC
Temperature response: ± 0.8 dB (- 20ºC to 60ºC)
Dimensions: 28.5 x 10.5 x 10.5 cm
Weight: 140 g
