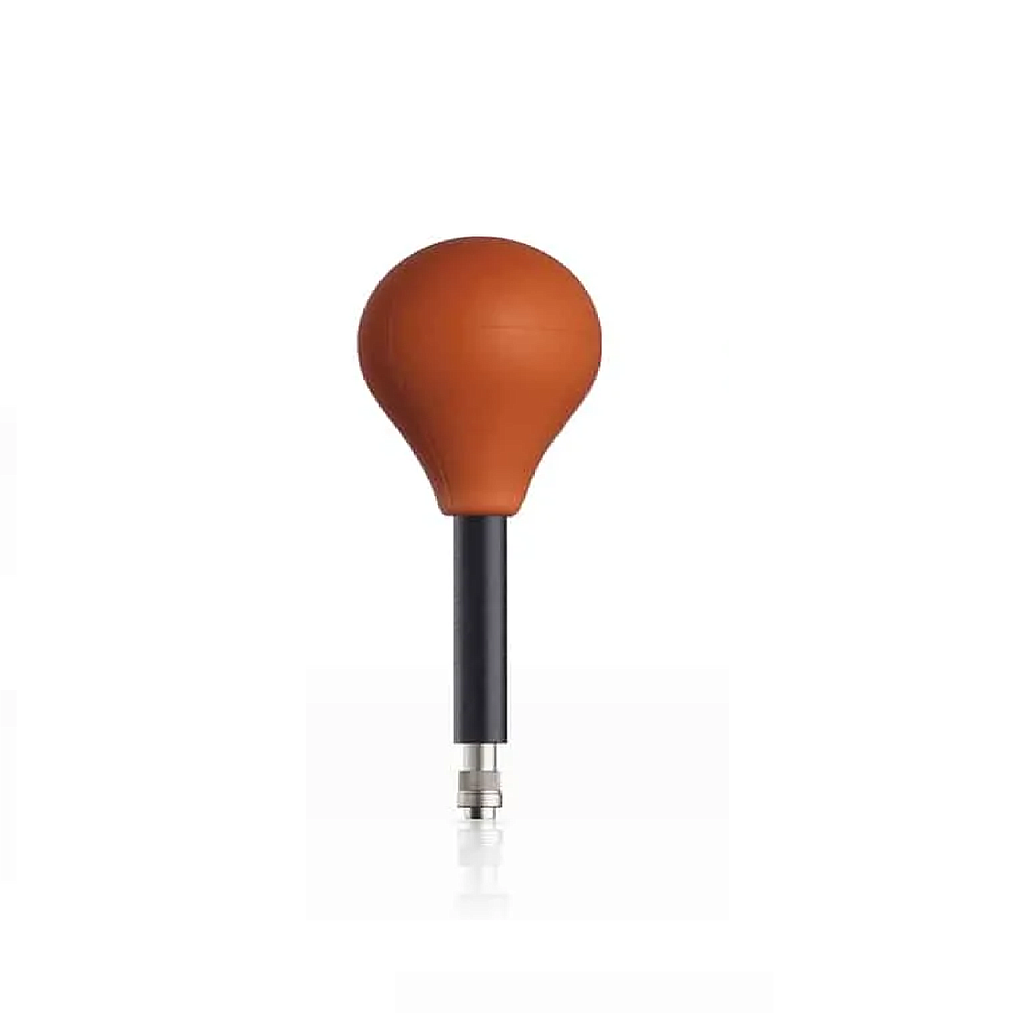

Wavecontrol WPH60 H Field Probe (300 kHz - 60 MHz) (300 kHz - 60 MHz, 20 A/m (CW))

MAIN APPLICATIONS: Broadcasting, RFID/EAS, Induction heating (HF), Medical, Workplace assessment, Assessment of workers bearing AIMDs, Human exposure assessment, Research/Labs
Compatible with Wavecontrol SMP2, MonitEM
Frequency range: 300 kHz - 60 MHz
Sensor type: Isotropic; RMS diode technology
Type of frequency response: Flat
Measurement range:
0.018 - 20 A/m (CW)
0.018 - 1 A/m (RMS)
Dynamic range: 60 dB
Sensitivity: 0.018 A/m
Frequency response:
± 0.5 dB (500 kHz - 30 MHz)
- 3 / + 0.5 (300 kHz - 60 MHz)
Linearity: ± 1 dB (0.04 to 4 A/m)
Axial isotropy: ± 1 dB
Damage level (CW): 35 A/m (350 A/m Peak 1 μs, period 100 μs)
Calibration period: 24 months (recommended)
Temperature range: - 20 ºC to 50 ºC
Dimensions: 270 mm x 90 mm Ø
Weight: 170 g
